Product Summary
The OPA336N/3K microPower CMOS operational amplifier is designed for battery-powered applications. It operates on a single supply with operation as low as 2.1V. The output of the OPA336N/3K is rail-to-rail and swings to within 3mV of the supplies with a 100kΩ load. The common-mode range extends to the negative supply-ideal for single-supply applications. Single, dual, and quad versions have identical specifications for maximum design flexibility. In addition to small size and low quiescent current (20μA/amplifier), the OPA336N/3K features low offset voltage (125μV max), low input bias current (1pA), and high openloop gain (115dB).
Parametrics
OPA336N/3K absolute maximum ratings: (1)Supply Voltage: 7.5V; (2)Signal Input Terminals, Voltage: (V–) –0.3V to (V+) +0.3V; Current: 10mA; (3)Output Short-Circuit: Continuous; (4)Operating Temperature: –55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃; (8)ESD Rating: Charged Device Model, OPA336 NJ and UJ only (CDM): 1000V; Human Body Model (HBM): 500V;Machine Model (MM): 100V.
Features
OPA336N/3K features: (1)single-supply operation; (2)rail-to-rail output (within 3mV); (3)micropower: iq = 20μA/amplifier; (4)microsize packages; (5)low offset voltage: 125μV max; (6)specified from Vs = 2.3V to 5.5V; (7)single, dual, and quad versions.

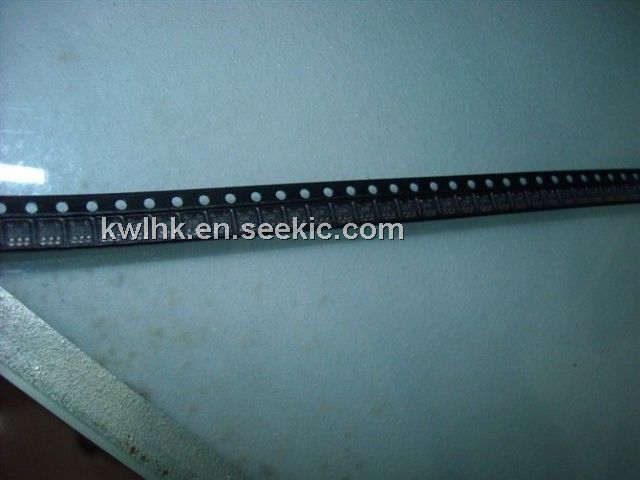

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() OPA336N/3K |
![]() Texas Instruments |
![]() Operational Amplifiers - Op Amps Single-Supply MicroPower CMOS |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() OPA336N/3KG4 |
![]() Texas Instruments |
![]() Operational Amplifiers - Op Amps Single-Supply MicroPower CMOS |
![]() Data Sheet |
![]()
|
|
