Product Summary

The P2010A-08SR is a selectable spread spectrum frequency modulator designed specifically for PC peripheral and embedded controller markets. The P2010A-08SR reduces electromagnetic interference (EMI) at the clock source which provides system wide reduction of EMI of all clock dependent signals. The P2010A-08SR allows significant system cost savings by reducing the number of circuit board layers and shielding that are traditionally required to pass EMI regulations. The P2010A-08SR is targeted towards the embedded controller market and PC peripheral markets including scanners, facsimile, MFPs, printers, PDA, IA, and GPS devices.

Parametrics

P2010A-08SR absolute maximum ratings: (1)VDD, VIN Voltage on any pin with respect to GND: -0.5 to + 7.0 V; (2)TSTG Storage temperature: -65 to +125 °C; (3)TA Operating temperature: 0 to +70 °C; (4)IIH Input High Current (pull-down resistor on input SSON): 35 μA; (5)tON Power Up Time (First locked clock cycle after power up): 0.18 ms; (6)ZOUT Clock Output Impedance: 50 Ω; (7)fIN Input Frequency when: 10 to 30 MHz.

Features

P2010A-08SR features: (1)FCC approved method of EMI attenuation; (2)Provides up to 20 dB of EMI suppression; (3)Generates a low EMI spread spectrum clock of the input frequency; (4)Optimized for 10 MHz to 35MHz input frequency range; (5)Internal loop filter minimizes external components and board space; (6)4 selectable spread ranges; (7)SSON control pin for spread spectrum enable and disable options; (8)Low cycle-to-cycle jitter; (9)Wide operating range (3V to 5V); (10)16 mA output drives; (11)TTL or CMOS compatible outputs; (12)Low power CMOS design; (13)Available in 8 pin SOIC and TSSOP.

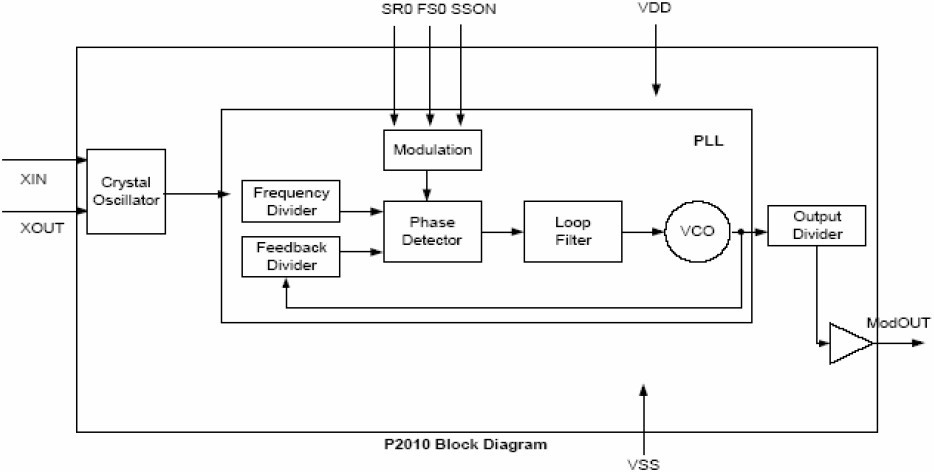

Diagrams

P2010A-08SR pin connection
