Product Summary

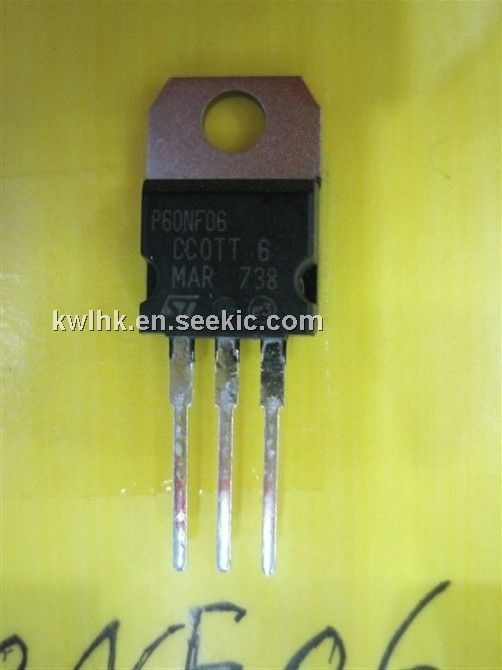

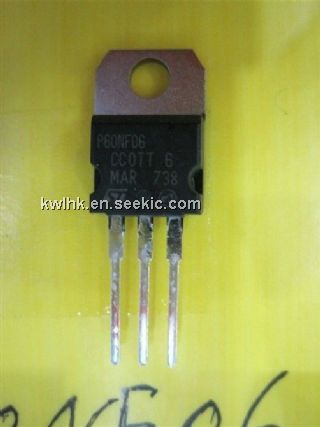

The p60nf06 is an N-channel 60V, 0.08Ω, 16A TO-220 STripFET II power mosfet. The p60nf06 is the latest development of STMicroelectronis unique Single Feature Size strip-based process. Applications of the p60nf06 include: motor control, audio amplifiers, high current, high switching speed, DC-DC&DC-AC converters and auotomative environment.

Parametrics

p60nf06 absolute maximum ratings: (1) Drain-source Voltage (VGS= 0) , VDS: 60V; (2) Drain-gate Voltage (RGS= 20 kΩ) VDGR: 60V; (3) Gate- source Voltage VGS: ±20V; (4) Drain Current (continuous) at TC= 25°C ID: 16A; (5) Drain Current (continuous) at TC= 100°C ID: 11A; (6) Drain Current (pulsed) IDM: 64A; (7) Total Dissipation at TC= 25°C, Ptot: 45W; (8) Storage Temperature Tstg: -55 to 175°C; (9) Operating Junction Temperature Tj: -55 to 175°C.

Features

p60nf06 features: (1) Typical RDS (on) =0.08Ω; (2) exceptional dv/dt capability; (3) low gate charge at 100°C; (4) application oriented characterization.

Diagrams

p60nf06 test circuit
