Product Summary

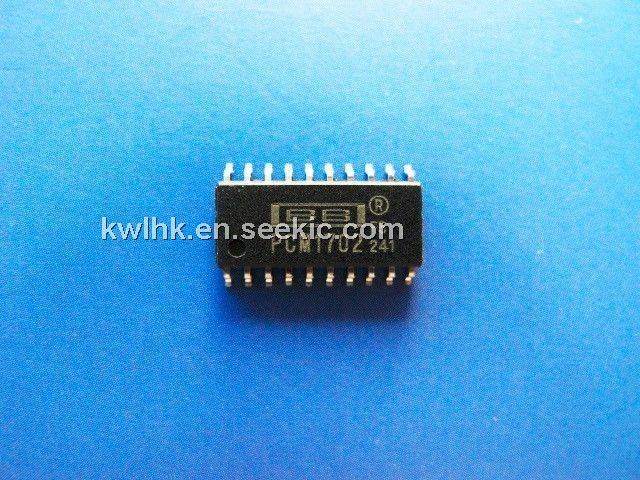

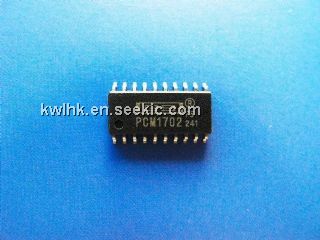

The PCM1702 is a BiCMOS advanced sign magnitude 20-bit digital-to-analog converter. Applications include very low distortion frequency synthesis and high-end consumer and professional digital audio applications.
Parametrics
PCM1702 absolute maximum ratings: (1)Power Supply Voltage: ±6.5VDC; (2)Input Logic Voltage: DGND-0.3V~+VDD+0.3V; (3)Operating Temperature: -25°C to +85°C; (4)Storage Temperature: -55°C to +125°C; (5)Power Dissipation: 500mW; (6)Lead Temperature (soldering, 10s): 260°C.
Features
PCM1702 features: (1)ultra low -96dB max thd+n (no external adjustment required); (2)near-ideal low level operation; (3)glitch-free output; (4)120dB snr typ (a-weight method); (5)industry std serial input format; (6)fast (200ns)current output(±1.2mA); (7)capable of 16x oversampling; (8)complete with reference; (9)low power (150mW typ).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCM1702P-JG4 |
Texas Instruments |
Audio D/A Converter ICs BiCMOS Adv Sign Magnitude 20B DAC |
Data Sheet |
|
|
||||||||||||
|
PCM1702P-K |
Texas Instruments |
Audio D/A Converter ICs BiCMOS Adv Sign Magnitude 20-Bit DAC |
Data Sheet |
Negotiable |
|
||||||||||||
|
PCM1702U-J/2K |
Texas Instruments |
DAC (D/A Converters) BiCMOS Adv Sign Magnitude 20-Bit DAC |
Data Sheet |
Negotiable |
|
||||||||||||
|
PCM1702U-K |
Texas Instruments |
Audio D/A Converter ICs BiCMOS Adv Sign Magnitude 20-Bit DAC |
Data Sheet |
|
|
||||||||||||
 |
PCM1702U-K/2KE6 |
Texas Instruments |
DAC (D/A Converters) BiCMOS Adv Sign Magnitude 20-Bit DAC |
Data Sheet |
Negotiable |
|
||||||||||||
|
PCM1702U-KE6 |
Texas Instruments |
Audio D/A Converter ICs BiCMOS Adv Sign Magnitude 20-Bit DAC |
Data Sheet |
|
|
||||||||||||
|
PCM1702U-K/2K |
Texas Instruments |
DAC (D/A Converters) BiCMOS Adv Sign Magnitude 20-Bit DAC |
Data Sheet |
Negotiable |
|
||||||||||||
|
PCM1702U-JE6 |
Texas Instruments |
Audio D/A Converter ICs BiCMOS Adv Sign Magnitude 20-Bit DAC |
Data Sheet |
|
|
||||||||||||
