Product Summary
The PI74FCT162245TVX is a fast CMOS 16-bit bidirectional transceiver. It is designed with current limiting resistors at its outputs to control the output edge rate resulting in lower ground bounce and undershoot.
Parametrics
PI74FCT162245TVX absolute maximum ratings: (1)Storage Temperature:–65°C to +150°C: 12 V; (2)Ambient Temperature with Power Applied: -40°C to +85°C; (3)Supply Voltage to Ground Potential (Inputs & Vcc Only):–0.5V to +7.0V; (4)Supply Voltage to Ground Potential (Outputs & D/O Only):–0.5V to +7.0V; (5)DC Input Voltage:–0.5V to +7.0V; (6)DC Output Current: 120 mA; (7)Power Dissipation: 1.0 W.
Features
PI74FCT162245TVX features: (1)Balanced output drivers: ±24mA; (2)Reduced system switching noise; (3)Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V, TA = 25°C.

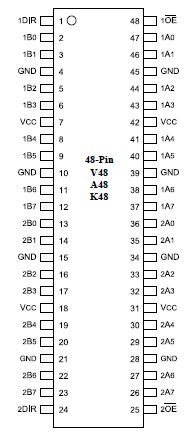

Diagrams
