Product Summary

The pvy117 Photovoltaic Relay is a single-pole, normally-open solid-state relay that can replace dry and Mercury-wetted reed relays in many applications. The pvy117 is ideally suited for use as matrix relay in low voltage ATE applications and general instrumentation applications involving high frequency test signals. Applications of the pvy117 include: Automated Test Equipment, Instrumentation and Data Acquisition.

Parametrics

pvy117 absolute maximum ratings: (1) Minimum control current: 2mA; (2) Control current for off-state resistance @TA=+25°C: 0.2mA; (3) Control current range (caution: current limit input LED) : 2 to 20mA; (4) Reverse voltage: 6V; (5) Operating voltage range V peak: 40V; (5) Continuous load current @ 40°C, 5mA control: 470mA; (6) Ambient temperature range, operating: -40 to +85°C, -40 to +100°C (storage) .

Features

pvy117 features: (1) Low signal distortion at high frequencies; (2) Low Coff * Ron Figure Of Merit; (3) High off-state resistance; (4) 1,500 Vrms I/O isolation; (5) Long operational life; (6) ESD Tolerance 2000V Human Body Model.

Diagrams

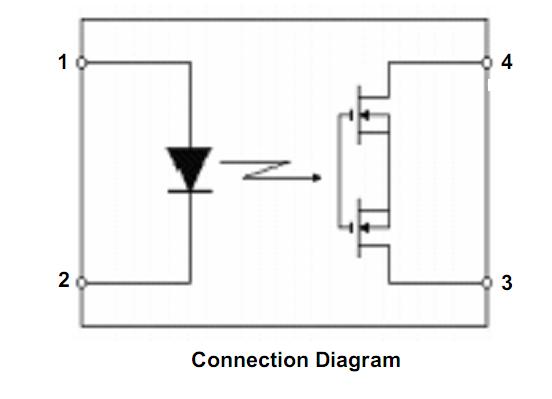

pvy117 Connection Diagram
