Product Summary

The RC1117D25X is a for low dropout three-terminal regulator . The RC1117D25X is have been optimized for low voltage where transient response and minimum input voltage are critical. The RC1117D25X is designed specifically to be used in Active Terminators for SCSI bus. Applications are (1)Active SCSI terminators; (2)High efficiency linear regulators; (3)Post regulators for switching supplies; (4)Battery chargers; (5)5V to 3.3V linear regulators; (6)Motherboard clock supplies.

Parametrics

RC1117D25X absolute maximum ratings: (1)VIN: 7.5 V; (2)Operating Junction Temperature Range: 0 to 125 °C; (3)Storage Temperature Range: -65 to 150 °C; (4)Lead Temperature (Soldering, 10 sec.): 300 °C.

Features

RC1117D25X features: (1)Low dropout voltage; (2)Load regulation: 0.05% typical; (3)Trimmed current limit; (4)On-chip thermal limiting; (5)Standard SOT-223, TO-263, and TO-252 packages; (6)Three-terminal adjustable or fixed 2.5V, 2.85V, 3.3V, 5V.

Diagrams

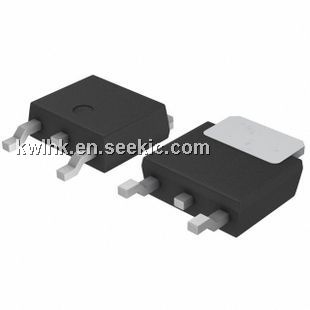

RC1117D25X pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RC1117D25X
RC1117D25X
Fairchild Semiconductor
Low Dropout (LDO) Regulators
Data Sheet
Negotiable
