Product Summary
The SAA7392HL is a dual asynchronous receiver/transmitter. It incorporates all logic and RAM required for the complete encoding and decoding processes.
Parametrics
SAA7392HL absolute maximum ratings: (1)supply voltage (core and pad ring): 3.0 to 3.6 V; (2)supply voltage (analog): 3.0 to 3.6 V; (3)supply voltage (output drivers): 3.0 to 3.6 V; (4)supply current: 200 mA; (5)crystal frequency: 8 to 33 MHz; (6)operating ambient temperature: 70°C; (7)storage temperature: -55 to +125°C.
Features
SAA7392HL features: (1)Very high speed Compact Disc (CD) compatible decoding and encoding device; (2)On-chip Analog-to-Digital Converter (ADC) and Automatic Gain Control (AGC) for HF data capture; (3)Eight-to-Fourteen Modulation (EFM); (4)Advanced motor control loop to allow CAV, CLV and pseudo-CLV playback; (5)Integrated FIFO for de-coupling of mechanism speed and application speed; (6)Versatile output interface allowing different I2S-bus and Electronic Industries Association of Japan (EIAJ) formats; (7)Device is fully compatible with ELM, PLUM and Sanyo CD-ROM block decoders; (8)Quad-pass CIRC correction for CD mode (C1-C2-C1-C2); (9)Subcode/header processing for CD format; (10)Frequency multiplier allows use of a 8 MHz crystal.

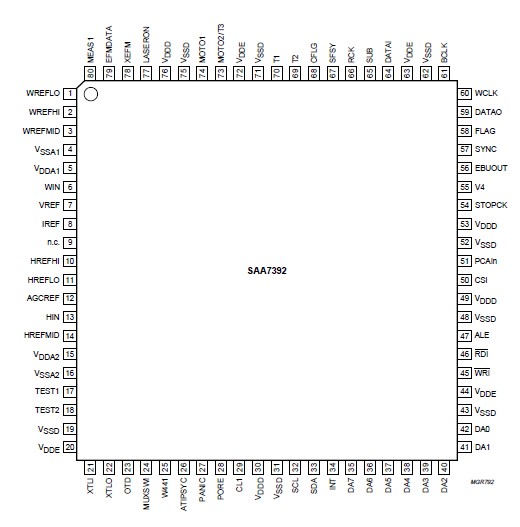

Diagrams
