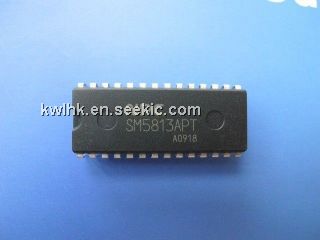

Product Summary

The SM5813APT is a high-fidelity eight-times oversampling digital filter LSI for digital audio system, using the molibdenum gate C-MOS process developed solely by NPC.

Parametrics

SM5813APT absolute maximum ratings: (1)supply voltage: -0.3 to 7.0V; (2)input voltage: -0.3 to VDD+0.3V; (3)storage temperature: -40 to 125°C; (4)power dissipation: 250mW; (5)soldering temperature: 255°C; (6)soldering time: 10sec.

Features

SM5813APT features: (1)eight-times oversampling; (2)two-channel filters; (3)20 *22 bit multiplier; (4)25-bit accumulator; (5)overflow limiter; (6)crystal oscillation circuit; (7)power supply voltage: 5V±0.5V; (8)molybdenam gate C-MOS process; (9)free running mode.

Diagrams

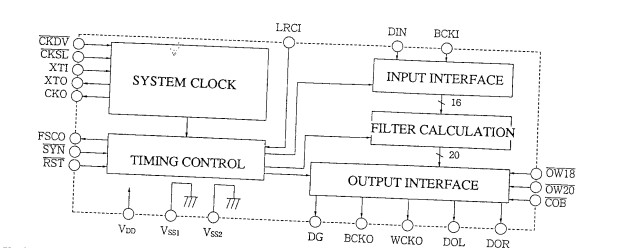

SM5813APT block diagram
