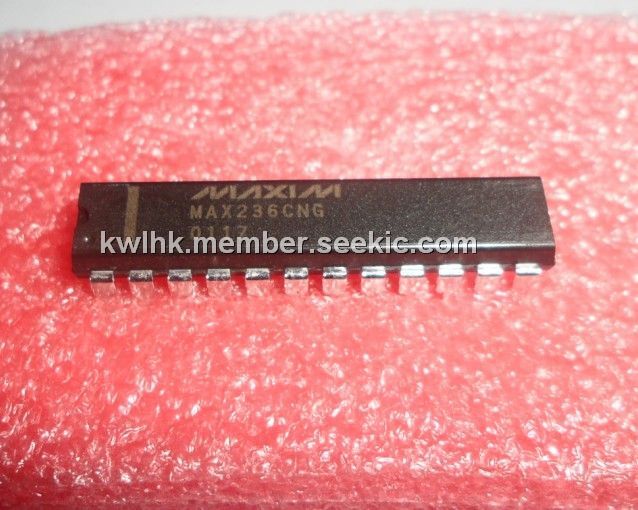

Product Summary
The MAX236CNG is a line driver/receiver. It is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The MAX236CNG is especially useful in battery-powered systems, since its low-power shutdown mode reduces power dissipation to less than 5uW. The MAX236CNG uses no external components and are recommended for applications where printed circuit board space is critical. The applications of the MAX236CNG are Portable Computers, Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems, Multidrop RS-232 Networks.
Parametrics
MAX236CNG absolute maximum ratings: (1)VCC:-0.3V to +6V; (2)V+ :(VCC - 0.3V) to +14V; (3)V- :+0.3V to -14V; (4)Input Voltages: TIN:-0.3V to (VCC - 0.3V), RIN:±30V, TOUT:±15V; (5)Output Voltages: TOUT:±15V, ROUT:-0.3V to (VCC + 0.3V); (6)Driver/Receiver Output Short Circuited to GND:Continuous; (7)Operating Temperature Ranges:0℃ to +70℃; (8)Storage Temperature Range:-65℃ to +160℃; (9)Lead Temperature (soldering, 10s):+300℃; (10)Soldering Temperature (reflow):+260℃, All other packages containing lead(Pb):+240℃.
Features
MAX236CNG features: (1)For Low-Voltage, Integrated ESD Applications MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors (MAX3246E Available in a UCSP Package); (2)For Low-Cost Applications MAX221E: ±15kV ESD-Protected, +5V, 1μA, Single RS-232 Transceiver with AutoShutdown.

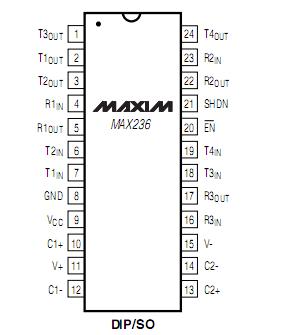

Diagrams
