Product Summary

The SMBT3904B5003 is an NPN Silicon Switching Transistor.



Parametrics

SMBT3904B5003 absolute maximum ratings: (1)Collector-emitter voltage VCE0: 40 V; (2)Collector-base voltage VCB0: 60 V; (3)Collector current IC: 200 mA; (4)Total power dissipation, TS = 69 ˚C Ptot: 330 mW; (5)Junction temperature Tj: 150°C; (6)Storage temperature range Tstg: – 65 to + 150°C.

Features

SMBT3904B5003 features: (1)High DC current gain: 0.1 mA to 100 mA; (2)Low collector-emitter saturation voltage; (3)Complementary type: SMBT 3906 (PNP).

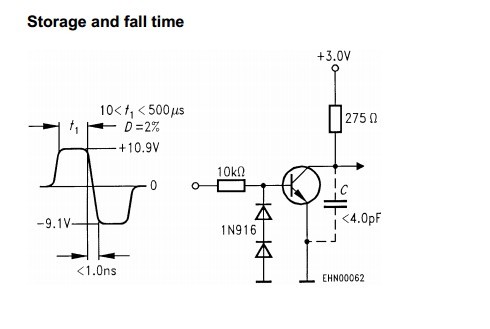

Diagrams

SMBT3904B5003 pin connection
