Product Summary
The SN74ABT162244DGGR is a 16-bit buffer and line driver. It is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The outputs, which are designed to source or sink up to 12 mA, include equivalent 25-Ω series resistors to reduce overshoot and undershoot.
Parametrics
SN74ABT162244DGGR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK: -18 mA; (3)Output clamp current, IOK: -50 mA; (4)Voltage range applied to any output in the high or power-off state, VO: -0.5 V to 5.5 V; (5)Current into any output in the low state, IO: 30 mA; (6)Package thermal impedance: 70°C/W; (7)Storage temperature range: -65°C to 150°C.
Features
SN74ABT162244DGGR features: (1)Members of the Texas Instruments Widebus Family; (2)Output Ports Have Equivalent 25-Ω Series Resistors, So No External Resistors Are Required; (3)Typical VOLP (Output Ground Bounce) <1 V at VCC = 5 V, TA = 25°C; (4)High-Impedance State During Power Up and Power Down; (5)Ioff and Power-Up 3-State Support Hot Insertion; (6)Distributed VCC and GND Pins Minimize High-Speed Switching Noise; (7)Flow-Through Architecture Optimizes PCB Layout; (8)Latch-Up Performance Exceeds 500 mA Per JESD-17.

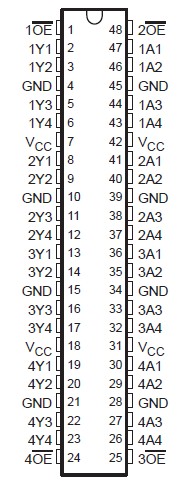

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() SN74ABT162244DGGR |
![]() Texas Instruments |
![]() Buffers & Line Drivers Tri-State 16-Bit |
![]() Data Sheet |
![]()
|
|
||||||||||||
