Product Summary
The SN74AHCT1G04DBVR is a single 2-input positive-OR gate. The device performs the Boolean function Y =A+B in positive logic.
Parametrics
SN74AHCT1G04DBVR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI: –0.5 V to 7 V ; (3)Output voltage range, VO: –0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0): –20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (7)Continuous current through each VCC or GND: ±75 mA; (8)Package thermal impedance, θJA: 58℃/W; (9)Storage temperature range, Tstg: –65 to 150℃.
Features
SN74AHCT1G04DBVR features: (1)Operating Range of 4.5 V to 5.5 V; (2)Max tpd of 8 ns at 5 V; (3)Low Power Consumption, 10-μA Max ICC; (4)±8-mA Output Drive at 5 V; (5)Inputs Are TTL-Voltage Compatible; (6)Latch-Up Performance Exceeds 250 mA Per JESD 17
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

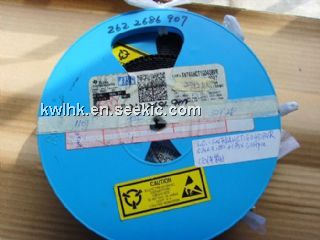

![]() SN74AHCT1G04DBVR |
![]() Texas Instruments |
![]() Inverters Single |
![]() Data Sheet |
![]()
|
|
||||||||||||
