Product Summary

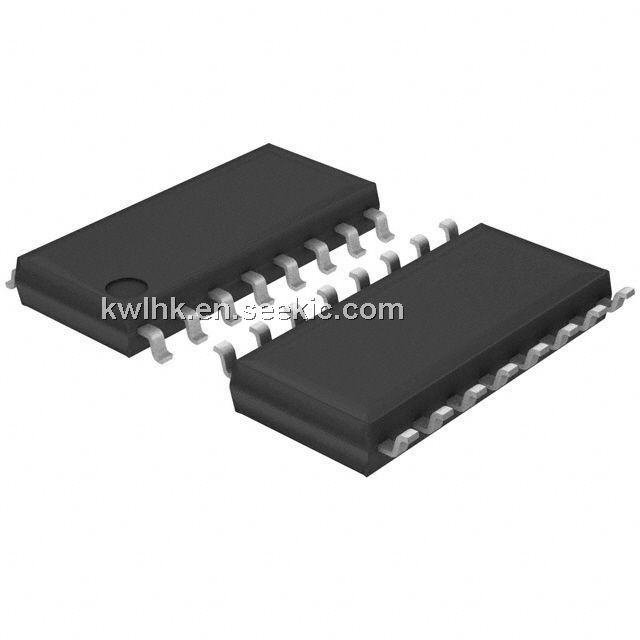

The SP232AET is an enhanced RS-232 line driver/receiver. It is available in plastic and ceramic DIP and SOIC packages operating over the commercial, industrial and military temperature ranges.
Parametrics
SP232AET absolute maximum ratings: (1)Vcc: +6V; (2)V+: (Vcc-0.3V) to +13.2V; (3)V-: 13.2V; (4)Input Voltage TIN: -0.3 to (Vcc +0.3V); (5)Input Voltage RIN: ±30V; (6)Power Dissipation CERDIP: 675 mW; (7)Output Voltage Tout: (V+, +0.3V) to (V-, -0.3V); (8)Output Voltage Rout: -0.3V to (Vcc +0.3V).
Features
SP232AET features: (1)Operates from Single 5V Power Supply; (2)Meets All RS-232D and V.28 Specifications; (3)Multiple Drivers and Receivers; (4)Small Charge Pump Capacitors – 0.1uF; (5)Operates with 0.1uF and 100mF Capacitors; (6)High Data Rate – 120kbps Under Load; (7)High Output Slew Rate – 10V/ms Under Load; (8)Low Power Shutdown ≤1uA; (9)3-State TTL/CMOS Receiver Outputs; (10)±30V Receiver Input Levels; (11)Low Power CMOS – 15mA Operation.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() SP232AET-L |
![]() Exar |
![]() RS-232 Interface IC RS232 ESD 2KV temp -40C to 85C |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() SP232AET-L/TR |
![]() Exar |
![]() Universal Bus Functions 5V SNGL SUPPLY RS-232 -40-85C |
![]() Data Sheet |
![]()
|
|
