Product Summary
The SP708REN-L is a low power microprocessor. It is ideal for +3.0V or +3.3V applications in automotive systems, computers, controllers, and intelligent instruments.
Parametrics
SP708REN-L absolute maximum ratings: (1)Terminal Voltage (with respect to GND): -0.3V to +6.0V; (2)Input Current Vcc: 20 mA; (3)Input Current GND: 20 mA; (4)Input Current output current: 20 mA; (5)Continuous Power Dissipation Plastic DIP: 727mW; (6)Storage Temperature Range: -65°C to +160°C; (7)Lead Temperature (solding 10 sec): +300°C.
Features
SP708REN-L features: (1)RESET pulse width - 200ms; (2)independent watchdog timer - 1.6 sec timeout; (3)40μA maximum supply current; (4)Debounced TTL/CMOS manual-reset input; (5)RESET asserted down to VCC = 1V; (6)WDI can be left floating, disabling the watchdog function; (7)Built-In Vcc Glitch Immunity; (8)Available in 8-pin PDIP, NSOIC, and μSOIC packages; (9)Voltage monitor for power failure or low battery warning; (10)Pin compatible enhancement to industry standards 706P/R/S/T and 708R/S/T.

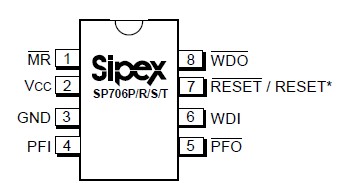

Diagrams
