Product Summary

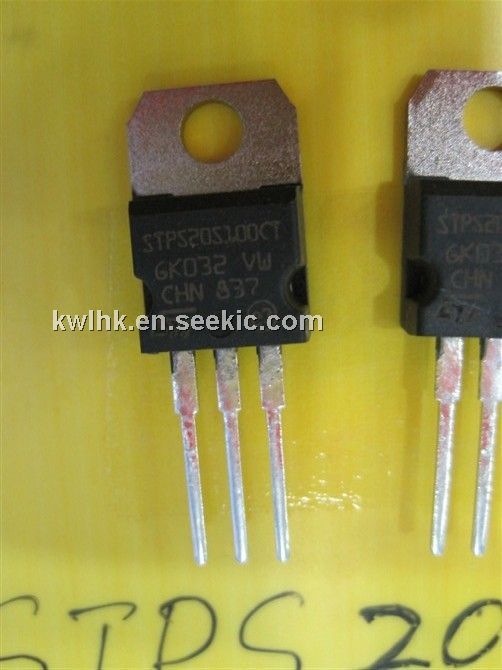

The STPS20S100CT is a power schottky rectifier. And it can be used in high frequency miniature switched mode power supplies such as adaptators and on board DC/DC converters.
Parametrics
STPS20S100CT absolute maximum ratings: (1)Repetitive peak reverse voltage: 100 V; (2)RMS forward voltage: 30 A; (3)Surge non repetitive forward current: 180 A; (4)Repetitive peak avalanche power: 7200 W; (5)Storage temperature range: -65 to +175 °C; (6)Maximum operating junction temperature: 175 °C; (7)Critical rate of rise of reverse voltage: 10000 V/μs.
Features
STPS20S100CT features: (1)High junction temperature capability for converters located in confined enrironment; (2)Low leakage current at high temperature; (3)Low static and dynamic losses as a result of the Schottky barrier; (4)Avalanche specification.

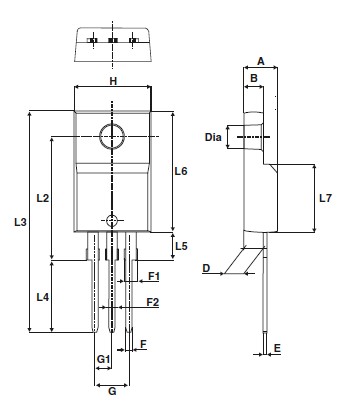

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STPS20S100CT |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 100V 20A Power Schottky 0.71V Vf |
Data Sheet |
|
|
||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||
|
STPS0520M |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 0.5 Amp 20 Volt |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
STPS0520Z |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 0.5 Amp 20 Volt |
Data Sheet |
|
|
||||||||||||||||||
|
STPS0530Z |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 0.5 Amp 30 Volt |
Data Sheet |
|
|
||||||||||||||||||
|
STPS0540Z |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 0.5 Amp 40 Volt |
Data Sheet |
|
|
||||||||||||||||||
|
STPS0540ZY |
|
DIODE SCHOTTKY 40V 0.5A SOD-123 |
Data Sheet |
|
|
||||||||||||||||||
|
STPS0560Z |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 0.5 Amp 60 Volt |
Data Sheet |
|
|
||||||||||||||||||
