TB62726AFG

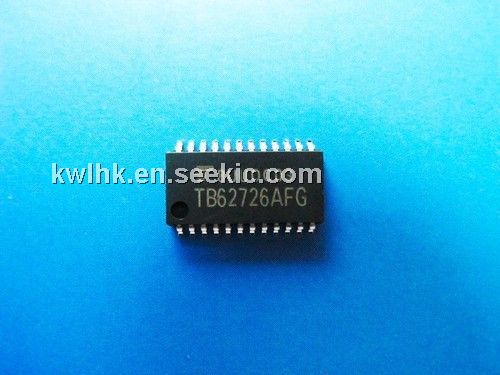

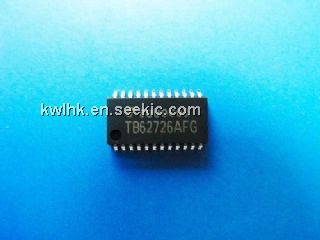

TB62726AFG, 16-bit, Constant-Current LED Driver, 3.3-V, SDIP-24, 2 to 90mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	5.00 / Piece
101 ~ 500 :	4.00 / Piece
501 ~ 1000 :	3.00 / Piece

PartNumber:: TB62726AFG

Brand:: Toshiba Semiconductor - Toshiba | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-26

From Other Seller

Part Number:TB62726AFG
US $3.00 - 5.00
Quantity:

piece

Product Summary

The TB62726AFG is a 16-bit Constant-Current LED Driver with Operating Voltage of 3.3-V and 5-V. It is comprised of constant-current drivers designed for LEDs and LED displays. The output current value can be set using an external resistor. As a result, all outputs will have virtually the same current levels. The TB62726AFG incorporates 16-bit constant-current outputs, a 16-bit shift register, a 16-bit latch and a 16-bit AND-gate circuit. These drivers have been designed using the Bi-CMOS process.

Parametrics

TB62726AFG absolute maximum ratings: (1)Supply voltage VDD: 6 V; (2)Input voltage VIN: -0.2 to VDD + 0.2 V; (3)Output current IOUT: +90 mA/ch; (4)Output voltage VOUT: -0.2 to 17 V; (5)Power dissipation : 0.83W; (6)Thermal resistance: 140°C/W; (7)Operating temperature Topr: -40 to 85 °C; (8)Storage temperature Tstg: -55 to 150 °C .

Features

TB62726AFG features: (1)Output current capability and number of outputs: 90 mA × 16 outputs; (2)Constant current range: 2 to 90 mA; (3)Application output voltage: 0.7 V (output current 2 to 80 mA)0.4 V (output current 2 to 40 mA); (4)For anode-common LEDs; (5)Input signal voltage level: 3.3-V and 5-V CMOS level (Schmitt trigger input); (6)Power supply voltage range VDD = 3.0 to 5.5 V; (7)Maximum output terminal voltage: 17 V; (8)Serial and parallel data transfer rate: 20 MHz (max, cascade connection).
