Product Summary
The TCA505 is a bipolar IC. The device includes a number of useful extra functions that enable high-grade, inductive proximity switches to be designed for an attractive price/performance ratio and with space savings. Compared to earlier ICs for inductive proximity switches temperature drift, noise immunity and the switching frequency of the IC have been improved.
Parametrics
TCA505 absolute maximum ratings: (1)Supply Voltage: -0.3 to 42 V; (2)Voltage on VT: -0.3 to 14 V; (3)Current on VREF: 0 to 100 uA; (4)Voltage on SC: 0 to Vs V; (5)Current from RDi: 0 to 2 mA; (6)Junction temperature: 110°C; (7)Storage Temperature: -55°C to + 110°C; (8)Thermal resistance: 110 K/W; (9)Capacitor: 50 nF.
Features
TCA505 features: (1)Wide supply voltage of 3.1 to 4.5 V and 4 to 40 V; (2)Low current consumption of less than 0.8 mA; (3)Integrated output stage for up to 60 mA output current; (4)Short-circuit and overload protection of output stages and external components; (5)Temperature response of the IC compensates that of the coil; (6)High noise immunity; (7)High switching frequencies up to 5 kHz; (8)Useful extra functions; (9)Suitable for two-wire AC proximity switches; (10)Temperature range - 40 to 110 °C.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TCA505B |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
TCA505B CHIP |
Infineon Technologies |
AC/DC Switching Converters IC for Inductive Proximity Switches |
Data Sheet |
Negotiable |
|
||||||||||||
|
TCA505BG |
Infineon Technologies |
Board Mount Motion & Position Sensors Proximity Switch w/ short-circuit prot. |
Data Sheet |
Negotiable |
|
||||||||||||
|
TCA505BG GEG |
Infineon Technologies |
Board Mount Motion & Position Sensors Proximity Switch w/ short-circuit prot. |
Data Sheet |
|
|
||||||||||||
|
TCA505BGGEG |
|

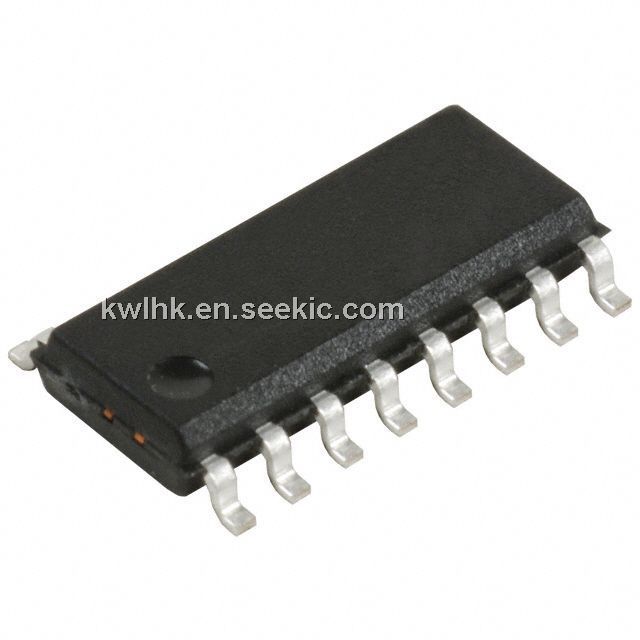

IC SWITCH PROXIMITY INDCT 16DSO |
Data Sheet |
Negotiable |
|
||||||||||||
