Product Summary

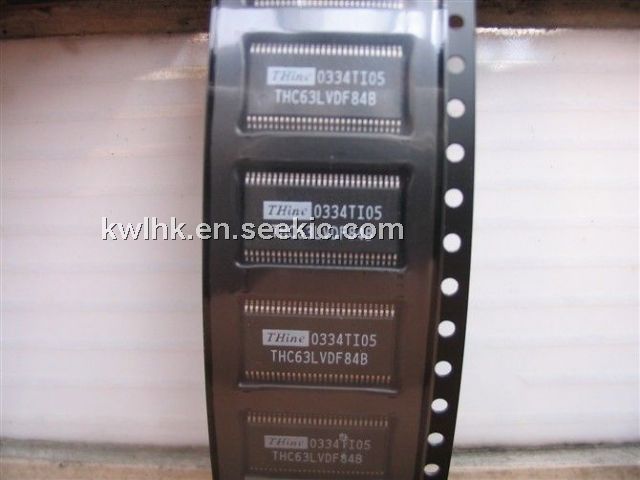

The THC63LVDF84B is a receiver. The THC63LVDF84B supports wide VCC range (2.5~3.6V). At single 2.5V supply, the THC63LVDF84B reduces EMI and power consumption. The THC63LVDF84B receiver converts the four LVDS (Low Voltage Differential Signaling) data streams back into 28bits of CMOS/TTL data with falling edge clock.
Parametrics
THC63LVDF84B absolute maximum ratings: (1)Supply Voltage (Vcc): -0.3 to +4V; (2)CMOS/TTL Input Voltage: -0.3 to (Vcc + 0.3V); (3)CMOS/TTL Output Voltage: -0.3V to (Vcc + 0.3V); (4)LVDS Receiver Input Voltage: -0.3V to (Vcc + 0.3V); (5)Junction Temperature: +125℃; (6)Storage Temperature Range: -55 to +150℃; (7)Resistance to soldering heat: +260℃ /10sec; (8)Maximum Power Dissipation25℃: 0.5W.
Features
THC63LVDF84B features: (1)Wide VCC range: 2.5~3.6V; (2)Wide dot clock range: 20-85MHz suited for VGA, SVGA, XGA and SXGA (VCC=3.0~3.6V); (3)Wide dot clock range: 20-70MHz suited for VGA, SVGA, XGA and SXGA (VCC=2.5V~3.6V); (4)PLL requires No external components; (5)Rx power consumption < 80mW VCC 2.5V, 65MHz Grayscale; (6)Power-Down Mode; (7)Low profile 56 Lead or 48 Lead TSSOP Package; (8)Pin compatible with THC63LVDF84A/F64A.

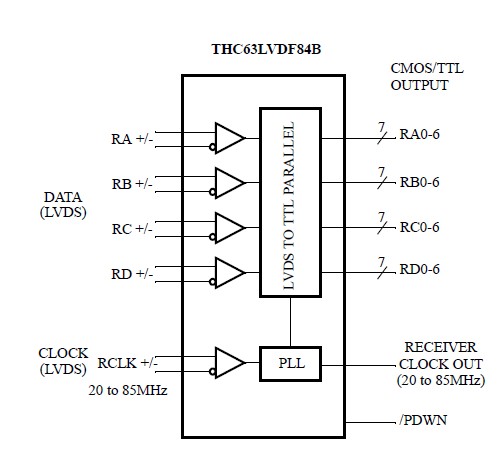

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 THC63LVDF84B |
Other |
|
Data Sheet |
Negotiable |
|
||||
