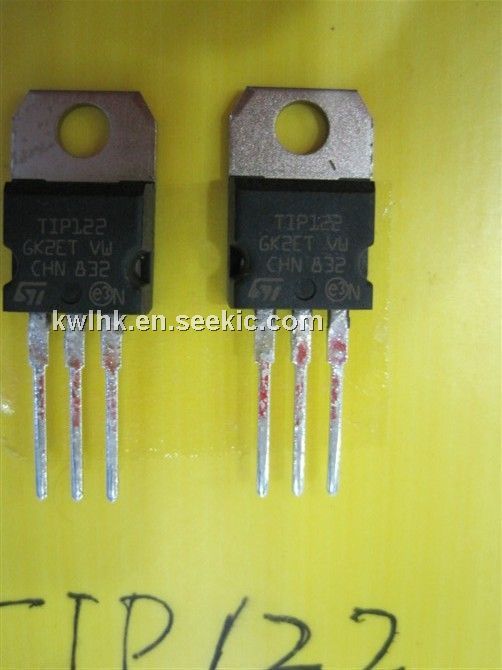

Product Summary

The TIP122 is a complementary Silicon high-power transistor. And it can be used in general–purpose power amplifier and low–speed switching applications.

Parametrics

TIP122 absolute maximum ratings: (1)Collector–emitter voltage: 100 V; (2)Collector–base voltage: 100 V; (3)Emitter - base voltage: 5.0 Vdc; (4)Collector current - continuous: 5 Adc; (5)Collector current - peak: 8 Adc; (6)Base current: 120 0Adc; (7)Total power dissipation @ Tc=25°C: 65 W; (8)Total power dissipation derate above 25°C: 0.52 W/°C; (9)Operating and storage junction temperature range: -65 to +150°C.

Features

TIP122 features: (1)Collector - emitter saturation voltage @ 100 mAdc: VCEO(sus) = 100 Vdc (Min); (2)Collector - mitter Sustaining Voltage: VCEO(sus) = 100 Vdc (Min); (3)High Current Gain: hFE = 2500 (Typ) @ IC = 4.0 Adc; (4)Compact TO-220 AB Package; (5)Monolithic construction with built–in base–emitter shunt resistors.

Diagrams

TIP122 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TIP122
TIP122
STMicroelectronics
Transistors Darlington NPN Power Darlington
Data Sheet
0-1: $0.30
1-10: $0.28
10-100: $0.25
100-250: $0.22
TIP122-BP
TIP122-BP
Micro Commercial Components (MCC)
Transistors Bipolar (BJT) NPN 100V 5A 65W
Data Sheet
0-1000: $0.40
TIP122F
TIP122F
Other

Data Sheet
Negotiable
TIP122FP
TIP122FP
STMicroelectronics
Transistors Darlington NPN Power Darlington
Data Sheet
0-1: $0.31
1-10: $0.29
10-100: $0.28
100-250: $0.26
TIP122G
TIP122G
ON Semiconductor
Transistors Darlington 5A 100V Bipolar Power NPN
Data Sheet
0-1: $0.35
1-25: $0.31
25-100: $0.23
100-500: $0.20
TIP122-S
TIP122-S
Bourns
Transistors Darlington NPN DARLINGTON 100V 5A
Data Sheet
Negotiable
TIP122TU
TIP122TU
Fairchild Semiconductor
Transistors Darlington NPN Epitaxial Darl
Data Sheet
0-1: $0.39
1-25: $0.34
25-100: $0.26
100-250: $0.23
TIP122TU_Q
TIP122TU_Q
Fairchild Semiconductor
Transistors Darlington
Data Sheet
Negotiable
