Product Summary

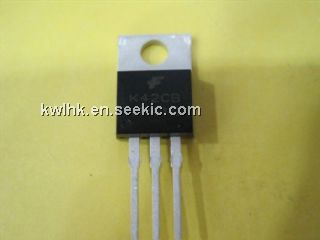

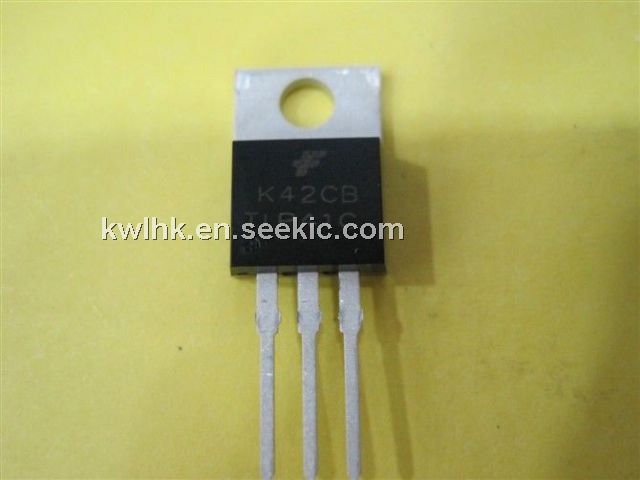

The TIP41C is a complementary Silicon high-power transistor. And it can be used in general–purpose power amplifier and switching applications.

Parametrics

TIP41C absolute maximum ratings: (1)Collector–emitter voltage: 100 V; (2)Collector–base voltage: 100 V; (3)Emitter - base voltage: 5.0 Vdc; (4)Collector current - continuous: 6 Adc; (5)Collector current - peak: 10 Adc; (6)Base current - continuous: 2.0 Adc; (7)Total power dissipation @ Tc=25°C: 65 W; (8)Total power dissipation derate above 25°C: 0.52 W/°C; (9)Operating and storage junction temperature range: -65 to +150°C.

Features

TIP41C features: (1)Collector - emitter saturation voltage: VCE(sat) = 1.5 Vdc (Max) @ IC = 6.0 Adc; (2)Collector - mitter Sustaining Voltage: VCEO(sus) = 100 Vdc (Min); (3)High Current Gain - Bandwidth Product fT = 3.0 MHz (Min) @ IC = 500 mAdc; (4)Compact TO-220 AB Package.

Diagrams

TIP41C dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TIP41C
TIP41C
STMicroelectronics
Transistors Bipolar (BJT) NPN Gen Pur Power
Data Sheet
0-1: $0.36
1-10: $0.33
10-100: $0.29
100-250: $0.26
TIP41C_F129
TIP41C_F129
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN Epitaxial Sil
Data Sheet
Negotiable
TIP41C_Q
TIP41C_Q
Fairchild Semiconductor
Transistors Bipolar (BJT)
Data Sheet
Negotiable
TIP41CE3
TIP41CE3
Other

Data Sheet
Negotiable
TIP41CG
TIP41CG
ON Semiconductor
Transistors Bipolar (BJT) 6A 100V 65W NPN
Data Sheet
0-1: $0.38
1-25: $0.34
25-100: $0.25
100-500: $0.22
TIP41CN
TIP41CN
STMicroelectronics
Transistors Bipolar (BJT) NPN 100 Volt 6 Amp
Data Sheet
Negotiable
TIP41CTU
TIP41CTU
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN Epitaxial Sil
Data Sheet
0-1: $0.34
1-25: $0.29
25-100: $0.25
100-250: $0.22
TIP41C-BP
TIP41C-BP
Micro Commercial Components (MCC)
Transistors Bipolar (BJT) NPN 100V 6A 65W
Data Sheet
0-1000: $0.34
