UDN2559BT

UDN2559BT, protected quad power driver, 25 V, 1.0 A, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 500 :	2.50 / Piece
501 ~ 1000 :	2.00 / Piece

PartNumber:: UDN2559BT

Brand:: Allegro MicroSystems - Allegro | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-26

From Other Seller

Part Number:UDN2559BT
US $2.00 - 3.00
Quantity:

piece

Product Summary

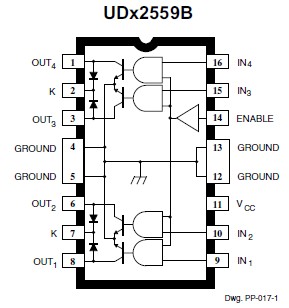

The UDN2559BT is a protected quad power driver. The outputs have a minimum breakdown voltage (load dump) of 60 V and a sustaining voltage of 40 V. The inputs are compatible with TTL and 5 V CMOS logic systems.

Parametrics

UDN2559BT absolute maximum ratings: (1)Storage Temperature Range: -55°C to +150°C; (2)Operating Ambient Temperature Range: -40°C to +125°C; (3)Output Voltage, VOUT: 60 V; (4)Over-Current Protected Output Voltage: 25 V; (5)Output Current: 1.0 A; (6)Supply Voltage, VCC: 7.0 V; (7)Input Voltage, VIN or VEN: 7.0 V.

Features

UDN2559BT features: (1)700 mA output current per channel; (2)independent over-current protection for each driver; (3)thermal protection for device and each driver; (4)low output-saturation voltage; (5)integral output flyback diodes; (6)TTL and 5 V CMOS compatible inputs.
