Product Summary

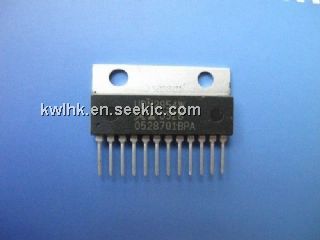

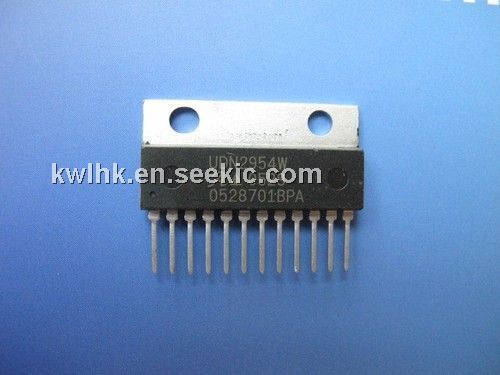

The UDN2954W is a full-bridge PWM motor driver. It is designed for bidirectional control of do or stepper motors with continuous output currents to 2 A and peak start-up currents as high as 3.5 A. For pulse-width modulated (chopped-mode) operation, the output current of the UDN2954W is determined by the user’s selection of a reference voltage and sensing resistor while the OFF pulse duration is set by an external RC timing network. PWM operation is characterized by maximum efficiency and low power-dissipation levels.

Parametrics

UDN2954W absolute maximum ratings: (1)motor supply voltage: 50 V; (2)output current, IOUT: ±3.5 A; (3)flyback diode voltage: VBB; (4)minimum clamp diode voltage: ground; (5)logic supply voltage: 7.0 V; (6)logic input voltage: VBB; (7)sense voltage: 1.5 V; (8)reference voltage: 15 V; (9)operating temperature range: -20 to +85 ℃; (10)storage temperature range: -55 to +150 ℃.

Features

UDN2954W features: (1)50 V output voltage rating; (2)2A continuous output rating; (3)crossover current protection; (4)BRAKE, ENABLE and current-limite functions.

Diagrams

 UDN2954W block diagram
