Product Summary
The VSC8110QB1 is an ATM/SONET/SDH 155/622 Mb/s Transceiver. The high speed clock is generated using an on-chip PLL which is selectable for 155.52 or 622.08 Mhz operation. The part can be used with 19.44, 38.88, 51.84 or 77.76 Mhz external reference clocks. The part is packaged in a 100PQFP with integrated heat spreader for optimum thermal performance and reduced cost. The demultiplexer contains SONET/SDH frame detection and recovery. In addition, the device provides both facility and equipment loopback modes.
Parametrics
VSC8110QB1 absolute maximum ratings: (1)Power Supply Voltage (VMM) Potential to GND: -0.5V to +2.5V; (2)Power Supply Voltage (VTTL) Potential to GND: -0.5V to +5.5V; (3)TTL Input Voltage Applied: -0.5V to VTTL + 1.0V; (4)VECL Input Voltage Applied: -0.5V to VMM + 1.0V; (5)Output Current (IOUT): 50mA; (6)Case Temperature Under Bias (TC): -55°C to +125°C; (7)Storage Temperature (TSTG): -65°C to +150°C.
Features
VSC8110QB1 features: (1)Operates at Either STS-3/STM-1 (155.52 Mb/s) or STS-12/STM-4 (622.08 Mb/s) Data Rates; (2)Compatible with Industry ATM UNI Devices; (3)On Chip Clock Generation of the 155.52 Mhz or 622.08 Mhz High Speed Clock; (4)Reference Clock Frequencies Selectable for 19.44, 38.88, 51.84 and 77.76 Mhz; (5)8 bit Parallel TTL Interface; (6)Integrated PLL for Clock Generation - No External Components; (7)SONET/SDH Frame Recovery; (8)Provides Equipment and Facilities Loopback; (9)Low Power - 1.98 Watts Maximum; (10)Dual Supply Operation- +2, +5 Volts; (11)100 PQFP Package.

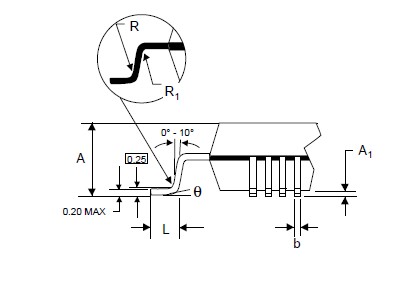

Diagrams
