Product Summary

The W83627HF-AW is a winbond I/O. The W83627HF-AW is evolving product from Winbond most popular I/O family. The W83627HF-AW features a whole new interface, namely LPC (Low Pin Count) interface, which will be supported in the next generation Intel chip-set.

Parametrics

W83627HF-AW absolute maximum ratings: (1) Power Supply Voltage (5V) : -0.5 to 7.0V; (2) Input Voltage: -0.5 to VDD +0.5V; (3) RTC Battery Voltage VBAT: 2.2 to 4.0V; (4) Operating Temperature: 0 to 70°C; (5) Storage Temperature: -55 to 150°C.

Features

The W83627HF-AW features: (1) Meet LPC Spec. 1.0; (2) Support LDRQ#(LPC DMA), SERIRQ (serial IRQ) ; (3) Include all the features of Winbond I/O W83977TF and W83977EF; (4) Integrate Hardware Monitor functions; (5) Compliant with Microsoft PC98/PC99 Hardware Design Guide; (6) Support DPM (Device Power Management) , ACPI; (7) Programmable configuration settings; (8) Single 24 or 48 MHz clock input.

Diagrams

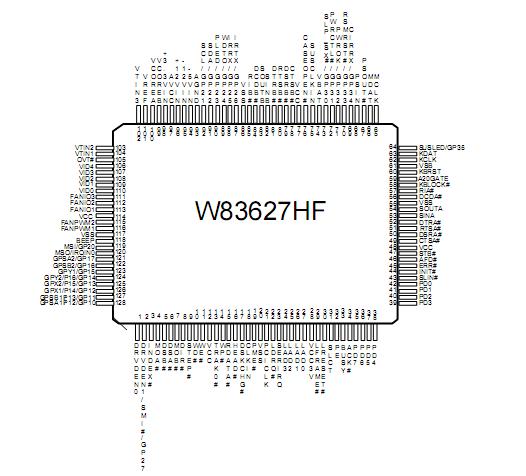

W83627HF-AW Pin Configuration
