ZLNB2013Q16

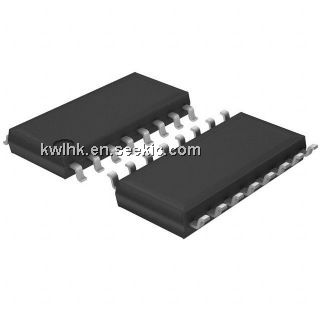

ZLNB2013Q16, dual tone and polarity switch lnb multiplex controller, 500 mA, 12V, QSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.78~2.93 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	2.93 / Piece
500 ~ 1000 :	2.86 / Piece
1000 ~ 1500 :	2.78 / Piece

PartNumber:: ZLNB2013Q16

Brand:: Zetex Semiconductors - Zetex | Pack: QSOP | D/C: 00+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-10

From Other Seller

Part Number:ZLNB2013Q16
US $2.78 - 2.93
Quantity:

piece

Product Summary

The ZLNB2013Q16 is a dual tone and polarity switch lnb multiplex controller. It is intended for use in Twin, Quad and multiple feed Universal LNBs, replacing many discrete components to save both manufacturing cost and PCB size, whilst improving reliability. And this device operates from a single supply which can be anything from 5-8V. Its quiescent current is typically only 9mA and this does not change significantly with load or logic state. It is available in the space saving QSOP16 surface mount package. It can be used in (1)Twin Universal LNB; (2)Quad Universal LNB; (3)Multi Feed Universal LNB; (4)LNB switch boxes.

Parametrics

ZLNB2013Q16 absolute maximum ratings: (1)Supply voltage: -0.6V to 12V; (2)Supply current: 500mA; (3)VPOL1 and VPOL2 Input voltage: 25V Continous; (4)Operating temperature: -40 to 80°C; (5)Storage temperature: -40 to 85°C.

Features

ZLNB2013Q16 features: (1)Dual polarization and tone switch; (2)Temperature compensated polarization switches; (3)Reduced cost solution, only 2 external components per channel; (4)Multiplexer IC direct drive; (5)Tone and pol. outputs are TTL, CMOS, pin diode and IF amp capable; (6)Transient resistant inputs; (7)Includes receiver-off detector; (8)User adjustable filter centre frequency and bandwidth; (9)Low frequency and DiSEqC control signals rejection; (10)Eliminates many close tolerance discrete components; (11)Wide supply operating range; (12)Low quiescent current.
