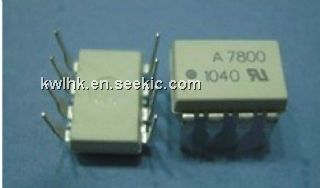

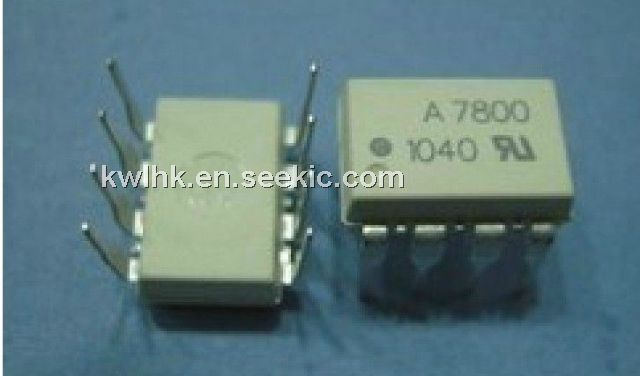

Product Summary

The A7800 is a voltage regulator. The A7800 designed for a wide range of applications. The The A7800 applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal currentlimiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents, and also can be used as the power-pass element in precision regulators.



Parametrics

A7800 absolute maximum ratings: (1)Vl Input voltage All others: 35 V; (2)TJ Operating virtual junction temperature: 150 °C; (3)Lead temperature 1,6 mm (1/16 in)from case for 10 s: 260 °C; (4)Tstg Storage temperature range: –65 to 150 °C.

Features

A7800 features: (1)3-Terminal Regulators; (2)Internal Thermal-Overload Protection; (3)Available in fixed 5V/8V/10V/12V/15V/24V options; (4)High Power-Dissipation Capability; (5)Internal Short-Circuit Current Limiting; (6)Output Current up to 1.5 A; (7)Output Transistor Safe-Area Compensation.

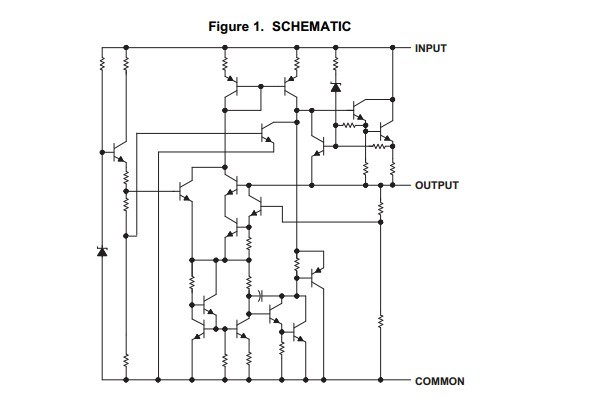

Diagrams

A7800 pin connection
