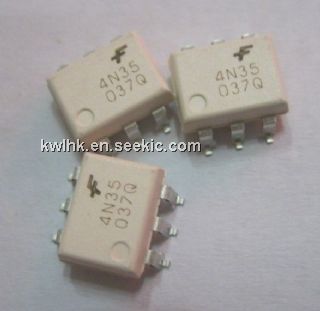

4N35

4N35, phototransistor optocoupler, 3 A, 7 V, 150 mW, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.22~0.33 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.33 / Piece
500 ~ 1000 :	0.28 / Piece
1000 ~ 1500 :	0.22 / Piece

PartNumber:: 4N35

Brand:: Fairchild Optoelectronics Group - Fairchild | D/C: 03+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-21

From Other Seller

Part Number:4N35
US $0.22 - 0.33
4N35

US $0.13 - 0.14 / Piece
(0) Remove
4N35-300E - OPTOCOUPLER, PHOTOTRANSISTOR, 3550VRMS

US $0.39 - 0.16 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 4N35 is a general purpose 6-pin phototransistor optocoupler. The 4N35 consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package. Applications are (1)Power supply regulators; (2)Digital logic inputs; (3)Microprocessor inputs.

Parametrics

4N35 absolute maximum ratings: (1)Storage Temperature T STG: -55 to +150 °C; (2)Operating Temperature T OPR: -55 to +100 °C; (3)Wave solder temperature (see page 14 for reflow solder profiles)T SOL: 260 for 10 sec °C; (4)Total Device Power Dissipation @ T A = 25°C Derate above 25°C P D: 250 mW; (5)DC/Average Forward Input Current I F: 100 (non-M), 60 (-M)mA; (6)Reverse Input Voltage V R 6 V; (7)Forward Current - Peak (300μs, 2% Duty Cycle)I F (pk): 3 A; (8)LED Power Dissipation @ T A = 25°C Derate above 25°C P D: 150 (non-M), 120 (-M)mW; (9)Collector-Emitter Voltage V CEO: 30 V; (10)Collector-Base Voltage V CBO: 70 V; (11)Emitter-Collector Voltage V ECO: 7 V; (12)Detector Power Dissipation @ T A = 25°C Derate above 25°C P D: 150 mW.

Features

4N35 features: (1)Also available in white package by specifying -M suffix, eg. 4N25-M; (2)UL recognized (File # E90700); (3)VDE recognized (File # 94766)Add option V for white package (e.g., 4N25V-M), Add option 300 for black package (e.g., 4N25.300).
