Product Summary

The A788J is a fixed-voltage integrated-circuit voltage regulator. It is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal currentlimiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents, and also can be used as the power-pass element in precision regulator.



Parametrics

A788J absolute maximum ratings: (1)vl input voltage: 40 v; all others 35 v; (2)tj operating virtual junction temperature: 150 °c; (3)lead temperature: 260 °c; (4)tstg storage temperature range: -65 to 150 °C.

Features

A788J features: (1)3-Terminal Regulators; (2)Internal Thermal-Overload Protection options; (3)Available in fixed 5V/8V/10V/12V/15V/24V; (4)High Power-Dissipation Capability; (5)Internal Short-Circuit Current Limiting; (6)Output Current up to 1.5 A; (7)Output Transistor Safe-Area Compensation.

Diagrams

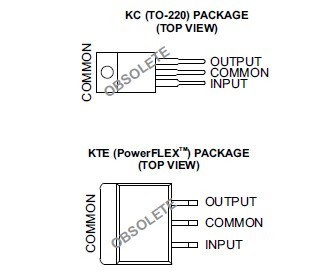

A788J pin connection
