Product Summary

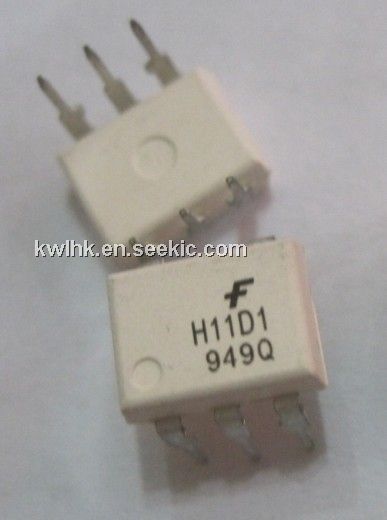

The H11D1 is a photo-transistor-type optically coupled optoisolator. A gallium arsenide infrared emitting diode is coupled with a high voltage NPN silicon phototransistor. The device is supplied in a standard plastic six-pin dual-in-line package. The applications of the H11D1 include Power supply regulators, Digital logic inputs, Microprocessor inputs, Appliance sensor systems and Industrial controls.

Parametrics

H11D1 absolute maximum ratings: (1)TSTG, Storage Temperature: -55 to +150℃; (2)TOPR, Operating Temperatur: -40 to +100℃; (3)TSOL, Lead Solder Temperature (Wave Solder): 260℃ for 10 sec; (4)PD, Total Device Power Dissipation: 260 mW TA = 25℃; 3.5 mW/℃ at Derate Above 25℃.

Features

H11D1 features: (1)High voltage: BVCER = 300V; (2)High isolation voltage: 7500 VAC peak, 1 second ; (3)Underwriters Laboratory (UL) recognized File # E90700, Volume 2.

Diagrams

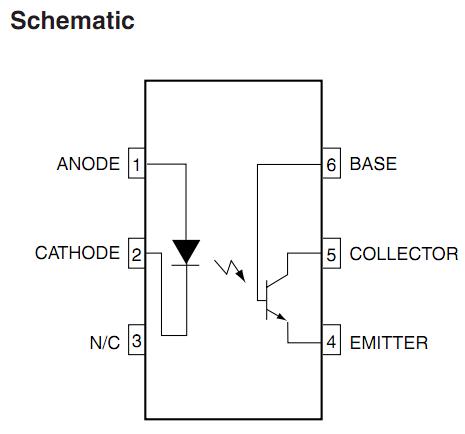

H11D1 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
H11D1
H11D1

Vishay Semiconductors

Transistor Output Optocouplers HV Phototransistor

Data Sheet

0-1: $0.68
1-10: $0.60
10-100: $0.57
100-250: $0.50
H11D1_Q
H11D1_Q

Fairchild Semiconductor

Transistor Output Optocouplers DIP-6 HV PHOTO TRAN

Data Sheet

Negotiable
H11D1300
H11D1300

Fairchild Semiconductor

Transistor Output Optocouplers HV PHOTO TRAN

Data Sheet

Negotiable
H11D13S
H11D13S

Fairchild Semiconductor

Transistor Output Optocouplers Hi Volt Optocoupler Phototransistor

Data Sheet

Negotiable
H11D1S_Q
H11D1S_Q

Fairchild Semiconductor

Transistor Output Optocouplers SO-6 HV PHOTO TRAN

Data Sheet

Negotiable
H11D1SD
H11D1SD

Fairchild Semiconductor

Transistor Output Optocouplers Hi Volt Optocoupler Phototransistor

Data Sheet

Negotiable
H11D1S-TA
H11D1S-TA

Lite-On

Transistor Output Optocouplers PTR 30%, 5KV

Data Sheet

0-1000: $0.17
1000-7000: $0.17
7000-10000: $0.16
H11D1S-TA1
H11D1S-TA1

Lite-On

Transistor Output Optocouplers PTR 30%, 5KV

Data Sheet

0-1000: $0.19
1000-3200: $0.19
3200-5000: $0.17
5000-10000: $0.16
