Product Summary

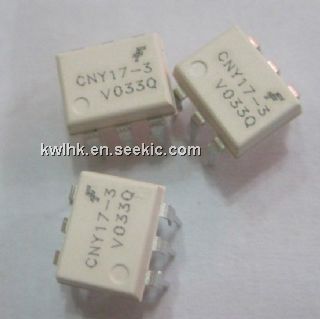

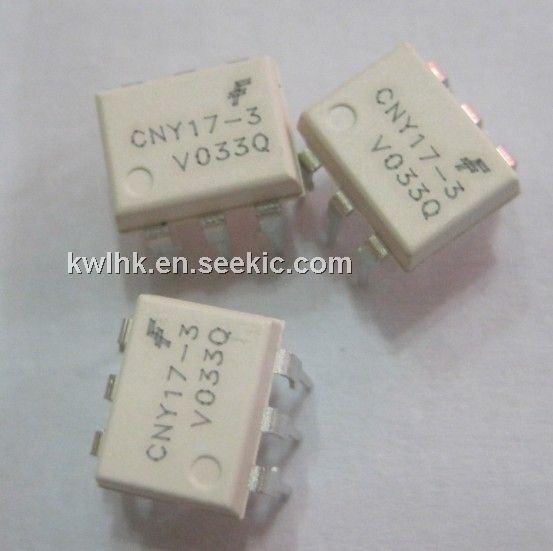

The CNY17-3 is a phototransistor optocoupler. It consists of a Gallium Arsenide IRED coupled with an NPN phototransistor. The applications of the CNY17-3 iclude: Power supply regulators, Digital logic inputs, Microprocessor inputs, Appliance sensor systems, Industrial controls.

Parametrics

CNY17-3 absolute maximum ratings: (1)Storage Temperature TSTG: -55 to +150 ℃; (2)Operating Temperature TOPR: -55 to +100 ℃; (3)Lead Solder Temperature TSOL: 260 for 10 sec ℃; (4)Total Device Power Dissipation @ 25℃ (LED plus detector) PD: -M 250mW, non -M: 260mW; Derate Linearly From 25℃: -M: 2.94mW/℃, non -M: 3.50mW/℃; (5)Continuous Forward Current IF: 60mA; (6)Reverse Voltage VR: 6 V; (7)Forward Current - Peak (1 μs pulse, 300 pps) IF(pk): 1.5A.

Features

CNY17-3 features: (1)CNY17-1/2/3 are also available in white package by specifying -M suffix; (2)UL recognized (File # E90700); (3)VDE recognized; (4)Current transfer ratio in select groups; (5)High BVCEO.70V minimum.

Diagrams

CNY17-3 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CNY17-3
CNY17-3

Vishay Semiconductors

Transistor Output Optocouplers NPN Phototransistor

Data Sheet

0-1: $0.18
1-10: $0.16
10-100: $0.15
100-250: $0.15
CNY17-3.
CNY17-3.

Vishay Semiconductors

Transistor Output Optocouplers Phototransistor Out Single CTR 100-200%

Data Sheet

0-1: $0.19
1-10: $0.16
10-100: $0.14
100-250: $0.14
CNY17-3-060E
CNY17-3-060E

Avago Technologies

Transistor Output Optocouplers 5000 Vrms 0.3mA

Data Sheet

0-3400: $0.09
3400-5000: $0.08
5000-10000: $0.08
CNY17-3-300E
CNY17-3-300E

Avago Technologies

Transistor Output Optocouplers 5000 Vrms 0.3mA

Data Sheet

0-1: $0.20
1-25: $0.14
25-100: $0.12
100-250: $0.11
CNY17-3-360E
CNY17-3-360E

Avago Technologies

Transistor Output Optocouplers 5000 Vrms 0.3mA

Data Sheet

0-3100: $0.10
3100-5000: $0.09
5000-10000: $0.09
CNY17-3-500E
CNY17-3-500E

Avago Technologies

Transistor Output Optocouplers 5000 Vrms 0.3mA

Data Sheet

0-1: $0.20
1-25: $0.14
25-100: $0.12
100-250: $0.11
CNY17-3M
CNY17-3M

Everlight

Transistor Output Optocouplers 100-200CTR 5000Vrms -55 to +110 Op Temp

Data Sheet

0-1: $0.13
1-50: $0.11
50-100: $0.10
100-500: $0.10
CNY17-3M-V
CNY17-3M-V

Everlight

Transistor Output Optocouplers 100-200CTR 5000Vrms -55 to +110 Op Temp

Data Sheet

0-1: $0.13
1-50: $0.11
50-100: $0.10
100-500: $0.10
