H11A1

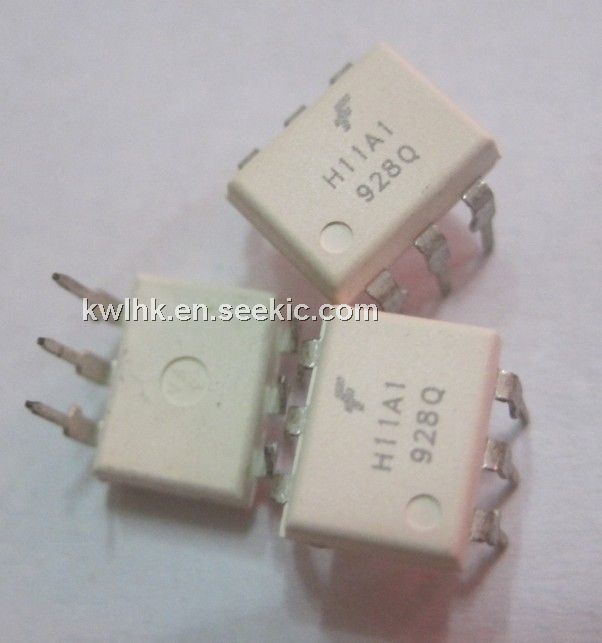

H11A1, Optoisolators Transistor Output, 120 mW, 30 Volts, 60 mA, dip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.33~0.48 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.48 / Piece
500 ~ 1000 :	0.41 / Piece
1000 ~ 1500 :	0.33 / Piece

PartNumber:: H11A1

Brand:: Fairchild Optoelectronics Group - Fairchild | D/C: 92+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-04

From Other Seller

Part Number:H11A1
US $0.33 - 0.48
Quantity:

piece

Product Summary

The H11A1 is a DIP Optoisolators Transistor Output. It is ideal for: (1)General Purpose Switching Circuits; (2)Interfacing and coupling systems of different potentials and impedances; (3)Monitor and Detection Circuits.

Parametrics

H11A1 absolute maximum ratings: (1)Reverse Voltage VR: 3 Volts; (2)Forward Current — Continuous IF: 60 mA; (3)LED Power Dissipation @ TA = 25°C with Negligible Power in Output Detector Derate above 25°C PD: 120 mW; (4)Collector–Emitter Voltage VCEO: 30 Volts; (5)Collector Current — Continuous IC: 150 mA.

Features

H11A1 features: (1)Current Transfer Ratios (CTR)30% and 50%; (2)Economical Optoisolators for General Purpose/High Volume Applications; (3)To order devices that are tested and marked per VDE 0884 requirements, the suffix V must be included at end of part number. VDE 0884 is a test option.
