Product Summary

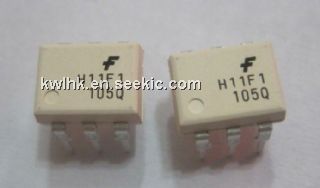

The h11f1 is a photo FET optocoupler. It consists of a Gallium-Aluminum-Arsenide IRED emitting diode coupled to a symmetrical bilateral silicon photo-detector. The detector is electrically isolated from the input and performs like an ideal isolated FET designed for distortion-free control of low level AC and DC analog signals. The h11f1 is mounted in dual in-line packages. The applications of the h11f1 include: Isolated variable attenuator, Automatic gain control, Active filter fine tuning/band switching, Isolated sample and hold circuit, Multiplexed, optically isolated A/D conversion.
Parametrics
H11F1 absolute maximum ratings: (1)TSTG Storage Temperature: -55 to +150℃; (2)TOPR Operating Temperature: -55 to +100℃; (3)TSOL Lead Solder Temperature: 260℃ for 10 sec; (4)IF Continuous Forward Current: 60mA; (5)VR Reverse Voltage: 5V; (6)IF(pk) Forward Current – Peak (10 μs pulse, 1% duty cycle): 1A; (7)PD LED Power Dissipation 25℃ Ambient: 100mW, Derate Linearly from 25℃: 1.33mW/℃.
Features
H11F1 features: (1)≤ 100Ω to ≥ 300 MΩ; (2)≥ 99.9% linearity; (3)≤ 15 pF shunt capacitance; (4)≥ 100 GΩ I/O isolation resistance; (5)Extremely low offset voltage; (6)60 Vpk-pk signal capability; (7)No charge injection or latch-up; (8)ton , toff ≤ 15 µS; (9)UL recognized (File #E90700); (10)VDE recognized (File #E94766): Ordering option 300 (e.g. H11F1.300).

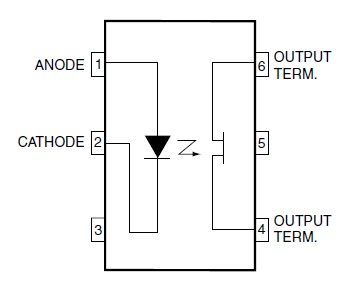

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 H11F1 |
Fairchild Semiconductor |
Transistor Output Optocouplers DIP-6 ANALOG FET |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11F1_Q |
Fairchild Semiconductor |
Transistor Output Optocouplers DIP-6 ANALOG FET |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11F13S |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler FET Bilateral analog |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11F1SM |
Fairchild Semiconductor |
Transistor Output Optocouplers ANALOG FET |
Data Sheet |
|
|
||||||||||||
|
H11F1VM |
Fairchild Semiconductor |
Transistor Output Optocouplers FET Bilateral analog |
Data Sheet |
|
|
||||||||||||
|
H11F1W |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler FET Bilateral analog |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11F1TVM |
Fairchild Semiconductor |
Transistor Output Optocouplers FET Bilateral analog |
Data Sheet |
|
|
||||||||||||
|
H11F1SR2M |
Fairchild Semiconductor |
Transistor Output Optocouplers FET Bilateral analog |
Data Sheet |
|
|
||||||||||||
