Product Summary

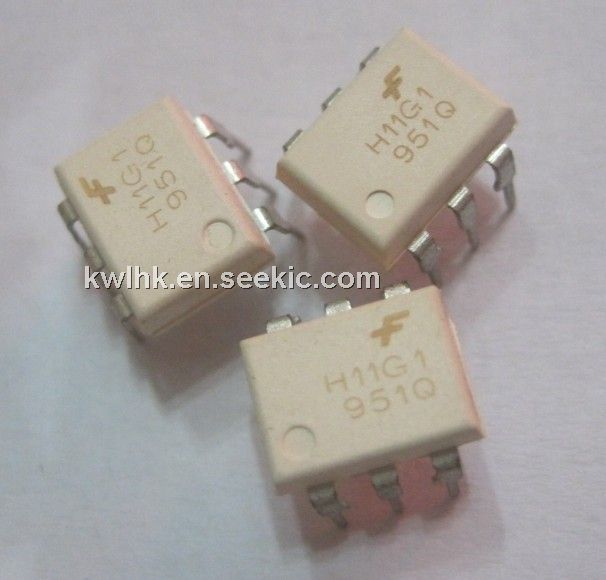

The H11G1 is a photodarlington-type optically coupled optocoupler. The H11G1 has a gallium arsenide infrared emitting diode coupled with a silicon darlington connected phototransistor which has an integral base-emitter resistor to optimize elevated temperature characteristics. It is ideal for: (1)cmos logic interface; (2)telephone ring detector; (3)low input ttl interface; (4)power supply isolation; (5)replace pulse transformer.

Parametrics

H11G1 absolute maximum ratings: (1)storage temperature TSTG: -55 to +150 °C; (2)operating temperature topr: -55 to +100 °c; (3)lead solder temperature tsol: 260 for 10 sec °c; (4)total device power dissipation @ ta = 25°c pd: 260 mw derate above 25°c: 3.5 mw/°c; (5)input-output isolation voltage viso: 5300 vac(rms)emitter if: 60 ma; (6)forward input current reverse input voltage vr: 6.0 v; (7)forward current - peak (1μs pulse, 300pps)if(pk): 3.0 a; (8)led power dissipation @ ta = 25°c pd: 100 mw; derate above 25°c: 1.8 mw/°c.

Features

H11G1 features: (1)High BVCEO: Minimum 100 V for H11G1; Minimum 80 V for H11G2; Minimum 55 V for H11G3.; (2)High sensitivity to low input current; (3)Minimum 500 percent CTR at IF = 1 mA; (4)Low leakage current at elevated temperature (maximum 100 μA at 80°C); (5)Underwriters Laboratory (UL)recognized File# E90700.

Diagrams

H11G1 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
H11G1
H11G1

Fairchild Semiconductor

Transistor Output Optocouplers DIP-6 HV PHOTO DARL

Data Sheet

Negotiable
H11G1_Q
H11G1_Q

Fairchild Semiconductor

Transistor Output Optocouplers DIP-6 HV PHOTO DARL

Data Sheet

Negotiable
H11G13S
H11G13S

Fairchild Semiconductor

Transistor Output Optocouplers Hi Volt Optocoupler Photodarlington

Data Sheet

Negotiable
H11G13SD
H11G13SD

Fairchild Semiconductor

Transistor Output Optocouplers Hi Volt Optocoupler Photodarlington

Data Sheet

Negotiable
H11G1M
H11G1M

Fairchild Semiconductor

Transistor Output Optocouplers Hi Volt Photodarling

Data Sheet

0-1: $0.41
1-25: $0.36
25-100: $0.32
100-250: $0.27
H11G1S
H11G1S

Fairchild Semiconductor

Transistor Output Optocouplers Hi Volt Optocoupler Photodarlington

Data Sheet

Negotiable
H11G1SM
H11G1SM

Fairchild Semiconductor

Transistor Output Optocouplers Hi Volt Photodarling

Data Sheet

0-1: $0.41
1-25: $0.36
25-100: $0.32
100-250: $0.27
H11G1SR2M
H11G1SR2M

Fairchild Semiconductor

Transistor Output Optocouplers Hi Volt Photodarling

Data Sheet

0-1: $0.44
1-25: $0.39
25-100: $0.34
100-250: $0.30
