Product Summary

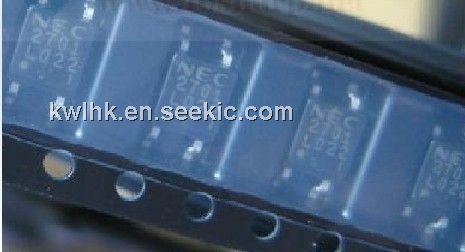

The PS2701-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. This package is SOP (Small Outline Package) type and has shield effect to cut off ambient light. The PS2701-1 is designed for high density mounting applications. Applications are (1)Hybrid IC; (2)Measuring instruments; (3)Power supply; (4)Programmable logic controllers.
Parametrics
PS2701-1 absolute maximum ratings: (1)Forward Current (DC)IF: 50 mA; (2)Reverse Voltage VR: 6 V; (3)Power Dissipation Derating DPD/°C: 0.8 mW/°C; (4)Power Dissipation PD: 80 mW/ch; (5)Peak Forward Current IFP: 1 A; (6)Transistor Collector to Emitter Voltage VCEO: 40 V; (7)Emitter to Collector Voltage VECO: 6 V; (8)Collector Current IC: 80 mA/ch; (9)Operating Ambient Temperature TA: -55 to +100 °C; (10)Storage Temperature Tstg: -55 to +150 °C.
Features
PS2701-1 features: (1)High isolation voltage (BV = 3 750 Vr.m.s.); (2)SOP (Small Outline Package)type; (3)High-speed switching (tr = 3 ms TYP., tf = 5 ms TYP.); (4)Ordering number of taping product (only 1-channel type): PS2701-1-E3, E4, F3, F4; (5)UL approved: File No. E72422 (S); (6)VDE0884 approved (Option).
