Product Summary

The TLV2541IDGK is a high performance, 12-bit low power, 3.6 ms, CMOS analog-to-digital converter (ADC) which operates from a single 2.7 V to 5.5 V power supply. The TLV2541IDGK has three digital inputs and a 3-state output that provides a direct 4-wire interface to the serial port of most popular host microprocessors (SPI interface). In addition to a high-speed A/D converter and versatile control capability, the TLV2541IDGK has an on-chip analog multiplexer that can select any analog inputs or one of three internal self-test voltages. The TLV2541IDGK is designed to operate with very low power consumption.

Parametrics

TLV2541IDGK absolute maximum ratings: (1)Supply voltage: –0.3 V to 6.5 V; (2)Input voltage range, VI (any input): –0.3 V to VDD + 0.3 V; (3)Reference input voltage: VDD + 0.3 V; (4)Digital input voltage range: –0.3 V to VCC + 0.3 V; (5)Operating free-air temperature range, TA: –40℃ to 85℃; (6)Storage temperature range, Tstg: –65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLV2541IDGK features: (1)Maximum Throughput 200 KSPS; (2)Built-In Reference, Conversion Clock; (3)Rail-to-Rail Analog Input With 500 kHz BW; (4)Optimized DSP Mode – Requires FS Only; (5)Low Power With Autopower Down; (6)Single Wide Range Supply 2.7 Vdc to 5.5 Vdc; (7)Small 8-Pin MSOP and SOIC Packages.

Diagrams

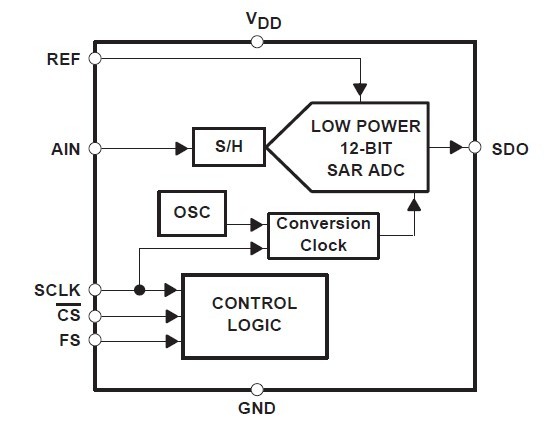

TLV2541IDGK pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TLV2541IDGK
TLV2541IDGK

Texas Instruments

ADC (A/D Converters) 12bit SAR ADC

Data Sheet

0-1: $6.68
1-10: $6.01
10-25: $5.35
25-50: $5.04
TLV2541IDGKG4
TLV2541IDGKG4

Texas Instruments

ADC (A/D Converters) 12-Bit 200 kSPS Serial Out

Data Sheet

0-1: $6.68
1-10: $6.01
10-25: $5.35
25-50: $5.04
TLV2541IDGKRG4
TLV2541IDGKRG4

Texas Instruments

ADC (A/D Converters) 12-Bit 200 kSPS Serial Out

Data Sheet

0-2005: $2.77
2005-2500: $2.77
TLV2541IDGKR
TLV2541IDGKR

Texas Instruments

ADC (A/D Converters) 12-Bit 200 kSPS Serial Out

Data Sheet

0-2005: $2.77
2005-2500: $2.77
