Product Summary
The JY24H-K is a Tantalum Solid Electrolytic Chip Capacitor.
Parametrics
JY24H-K absolute maximum ratings: (1)Capacitance Range: 1.0 μF to 220 μF; (2)Capacitance Tolerance: ±20%; (3)Leakage Current DCL: 0.1CV; (4)Temperature Range: -55°C to +125°C, -55oC to +105oC; (5)Reliability: 1% per 1000 hours at 85°C.
Features
JY24H-K features: (1)Conductive polymer electrode reduces ignition failure mode; (2)Lower ESR; (3)3x reflow 260°C compatible; (4)CV range: 1.0-220μF / 2.5-50V; (5)13 case sizes available.

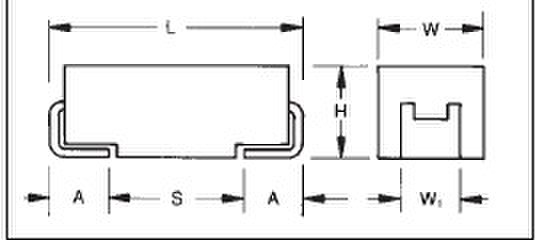

Diagrams
