Product Summary

The OZ-SS-148L is a Power PCB Relay. It is used in Home appliances, office machines.

Parametrics

OZ-SS-148L specifications: (1)Contact arrangement: 1 form A (NO), 1 form C (CO); (2)Rated voltage: 240VAC; (3)Max. switching voltage: 24VDC, 240VAC; (4)Rated current: 16A; (5)Switching power: 3840VA, 380W; (6)Contact material: AgSnO; (7)Min. recommended contact load: 100mA, 5VDC; (8)Initial contact resistance: 100mΩ at 1A, 6VDC; (9)Frequency of operation, with/without load: 1800/18000h-1; (10)Operate/release time max. standard version: 15/8ms, sensitive version: 20/8ms; (11)Electrical endurance NO 16A, 240VAC, resistive, 100×103 ops. NC 8A, 240VAC, resistive, 100×103 ops.; (12)Contact ratings: 16A, 240VAC/30VDC; (13)Mechanical endurance: 10×106 operations.

Features

OZ-SS-148L features: (1)meet ul 508, csa and tuv requirements.; (2)1 form a and 1 form c contact arrangements.; (3)immersion cleanable, sealed version available.; (4)meet 5,000v dielectric voltage between coil and contacts.; (5)meet 10,000v surge voltage between coil and contacts (1.2 / 50μs).; (6)quick connect terminal type available (ozf).; (7)ul tv-8 rating available (ozt).

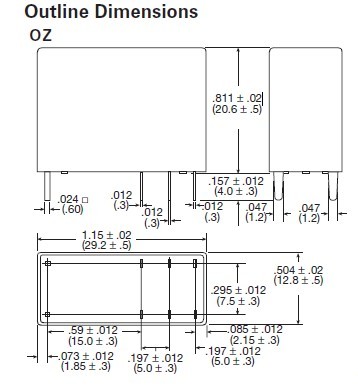

Diagrams

OZ-SS-148L pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OZ-SS-148LM1,200
OZ-SS-148LM1,200

RELAY GEN PURPOSE SPST 16A 48V
Data Sheet
0-1000: $0.93
