Product Summary

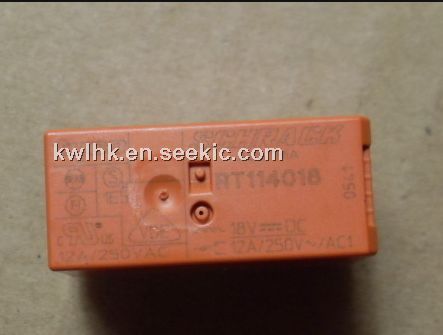

The RT114018 is a 16 Amp PC Board Miniature Relay.
Parametrics
RT114018 absolute maximum ratings: (1)Voltage: 5 to 110VDC.; (2)Nominal Power @ 25°C: 400mW; (3)Initial Insulation Resistance: 10,000 megohms, min., at 25°C, 500VDC and 50% rel. humidity; (4)Minimum Load: 12V/100mA; (5)Initial Contact Resistance: 100 milliohms max @ 1A 12VDC.
Features
RT114018 features: (1)SPST through DPDT contact arrangements.; (2)Immersion cleanable and flux tight versions available.; (3)VDE 10mm spacing, 5kV dielectric, coil to contacts.; (4)UL Class F (155°C)coil insulation system.; (5)Conforms to UL 508, 1873, 353 and 1950.; (6)Low profile; 15.7mm height.; (7)Sensitive coil; 400mW.; (8)Withstand surge voltage of 10,000V.; (9)Potter & Brumfield or Schrack brand.

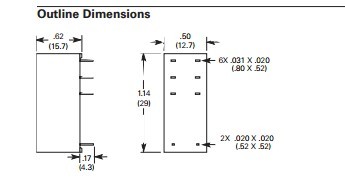

Diagrams
