Product Summary
The SRD-12VDC-SL-C is a Ternary PIN Photodiode.
Parametrics
SRD-12VDC-SL-C absolute maximum ratings: (1)Forward current IF: 10 mA; (2)Reverse voltage VR: 20 V; (3)Operating and storage temperature TA Tstg: - 40 to + 85 °C; (4)Max. radiant power into the opt. port (VR = 5 V)Fport: 1 mW; (5)Soldering time (wave / dip soldering), distance between solder point and base plate: ts 10 s.
Features
SRD-12VDC-SL-C features: (1)InGaAs/InP - PIN-photodiode; (2)Designed for telecommunications applications; (3)Sensitive receiver for the 2nd and 3rd optical window (1300 nm and 1500 nm); (4)Suitable for bit rates up to 1.2 Gbit/s; (5)Low junction and low package capacitance; (6)Fast switching times; (7)Low dark current; (8)Low noise; (9)Hermetically sealed 3-pin metal case; (10)With optimally coupled multimode-fiber pigtail.

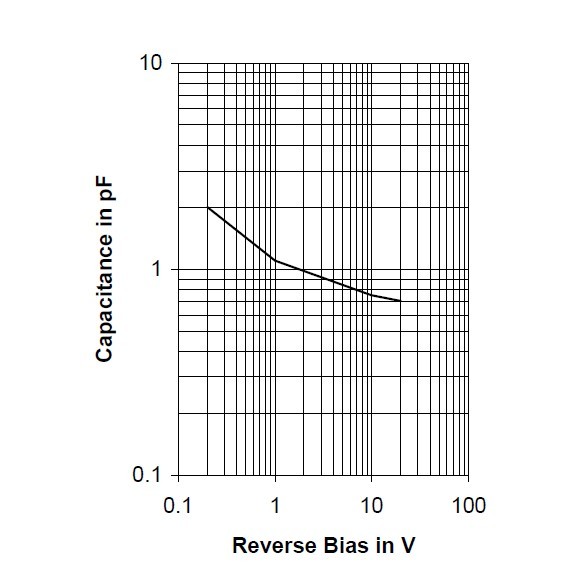

Diagrams
