Product Summary

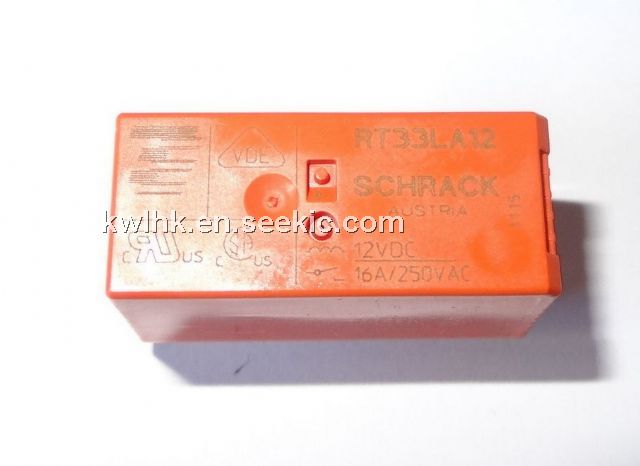

The RT33LA12 is a General Purpose Relay. It is ideal for: Domestic appliances, heating control, lighting control



Parametrics

RT33LA12 absolute maximum ratings: (1)Rated current: 16 A; (2)Maximum breaking capacity AC: 4000 VA; (3)Rated frequency of operation with / without load: 6 / 1200 min; (4)Coil power DC coil: typ 400 mW; (5)Coil power: typ 600 mW; (6)Minimum energization duration: 30 MS.

Features

RT33LA12 features: (1)1 pole 16 A, 1 CO or 1 NO contact; (2)For inrush peak currents up to 80 A; (3)Sensitive coil 400 mW; (4)5 kV / 10 mm coil-contact; (5)Reinforced insulation; (6)Ambient temperature 85°C; (7)RoHS compliant (Directive 2002/95/EC)as per product date code 0413.

Diagrams

RT33LA12 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RT33LA12
RT33LA12
TE Connectivity / Schrack
General Purpose / Industrial Relays SPST-NO 16A 12VDC INRUSH PWR RELAY
Data Sheet
0-1: $2.42
1-25: $2.17
25-50: $2.00
50-100: $1.89
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RT334005
RT334005

RELAY GEN PURPOSE SPST 16A 5V
Data Sheet
0-500: $1.20
RT334005F
RT334005F

RELAY GEN PURPOSE SPST 16A 5V
Data Sheet
0-500: $1.20
RT334012
RT334012
TE Connectivity / Schrack
General Purpose / Industrial Relays 12V 16A 1NO THT POWER RELAY
Data Sheet
0-1: $1.24
1-25: $1.08
25-50: $0.98
50-100: $0.86
RT334012F
RT334012F
TE Connectivity / P&B
General Purpose / Industrial Relays SPST-NO 16A 12VDC PCB MINIATURE RELAY
Data Sheet
0-1630: $0.90
RT334024
RT334024
TE Connectivity / Schrack
General Purpose / Industrial Relays SPST-NO 16Amps 24VDC
Data Sheet
0-1: $1.24
1-25: $1.08
25-50: $0.98
50-100: $0.81
RT334024F
RT334024F
TE Connectivity / P&B
General Purpose / Industrial Relays SPST-NO 16Amps 24VDC
Data Sheet
0-1: $2.24
1-25: $1.96
25-50: $1.75
50-100: $1.61
