Product Summary
The TX2-5V is a new pin layout (LT type) added relay with broad lineup and AC 2000 V breakdown voltage. It is ideal for: (1)Communications (xDSL, Transmission); (2)Measurement; (3)Security; (4)Home appliances, and audio/visual equipment; (5)Automotive equipment; (6)Medical equipment.
Parametrics
TX2-5V absolute maximum ratings: (1)Switching Voltage: 220VDC Max; (2)Coil Type: Non Latching; (3)Coil Current: 28.1mA; (4)Coil Voltage: 5VDC; (5)Turn On Voltage (Max): 3.75 VDC; (6)Turn Off Voltage (Min): 0.5 VDC; (7)Features: Sealed Fully; (8)Mounting Type: Through Hole ; (9)Termination Style: PC Pin; (10)Packaging: Tube; (11)Contact Material: Silver Palladium (AgPd), Gold (Au); (12)Operate Time: 4ms; (13)Release Time: 4ms; (14)Coil Power: 140 mW; (15)Coil Resistance: 178 Ohms; (16)Operating Temperature: -40℃ ~ 85℃; (17)Lead Free Status: Lead Free.
Features
TX2-5V features: (1)2,000 V breakdown voltage between contact and coil; (2)Outstanding surge resistance; (3)Nominal operating power: High sensitivity of 140mW; (4)High contact capacity: 2 A 30 V DC 5. Compact size; (5)A range of surface-mount types is also available.

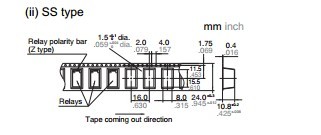

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TX2-5V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 5VDC DPDT NON-LATCHING PCB |
Data Sheet |
|
|
||||||||||||
|
TX2-5V-1 |
Panasonic Electric Works |
Low Signal Relays - PCB 2 Form C 2A 30VDC 5VDC |
Data Sheet |
|
|
||||||||||||
