Product Summary

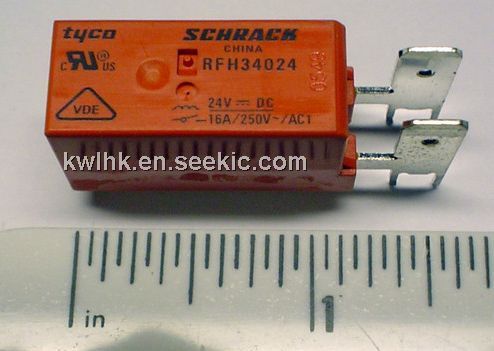

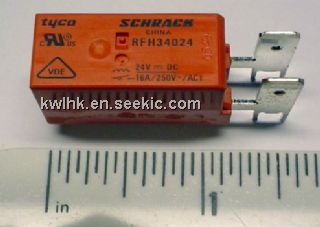

The RFH34024 is a Power Relay. It is ideal for: Oven control, electric heating, power supplies, air conditioning, microwares, hobs



Parametrics

RFH34024 absolute maximum ratings: (1)Rated current: 16 A; (2)Maximum breaking capacity AC: 4000 VA; (3)Limiting making capacity, max 4 s, duty factor 10%: 25 A; (4)Rated frequency of operation with / without load: 6 / 1200 min; (5)Coil power DC coil typ.: 400 mW; (6)Ambient temperature range: -40 to +105°C; (7)Operate- / release time: typ.10 ms.

Features

RFH34024 features: (1)1 pole 16 A, 1 NO or 1 NC contact; (2)Switching capacity 4000 VA; (3)Coil power 400 mW; (4)Reinforced insulation (EN 61810, 60335, 60730); (5)Ambient temperature up to 105°C; (6)Quick connect terminals for load side; (7)WG version: Materials in accordance to IEC 60335-1; (8)RoHS compliant (Directive 2002/95/EC).

Diagrams

RFH34024 pin connection
