Product Summary

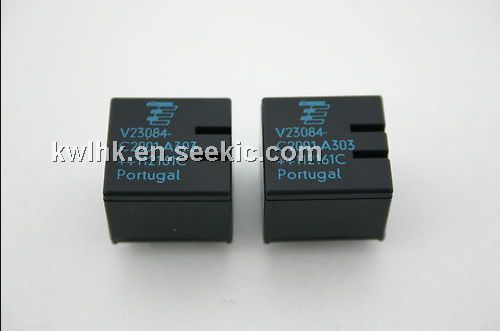

The V23084-C2001-A303 is a PCB relay Twin relay. Applications are: (1)flasher load; (2)central doorlock; (3)headlight dipping; (4)immobilizers; (5)seat adjustment motors; (6)sunroof and window motors.



Parametrics

V23084-C2001-A303 absolute maximum ratings: (1)available for nominal voltages: 12 v; (2)nominal power consumption of the unsuppressed coil at nominal voltage: 1.1 w; (3)test voltage winding/contact: 500 vacrms; (4)maximum ambient temperature range1): – 40 to + 85 °c; (5)max. switching rate without contact loading: 20 hz; (6)operate time2)typ: 3 ms; (7)release time2)typ: 1.5 ms.

Features

V23084-C2001-A303 features: (1)two mini power relay k in one housing; (2)optimized assembly costs; (3)reduced overall volume.

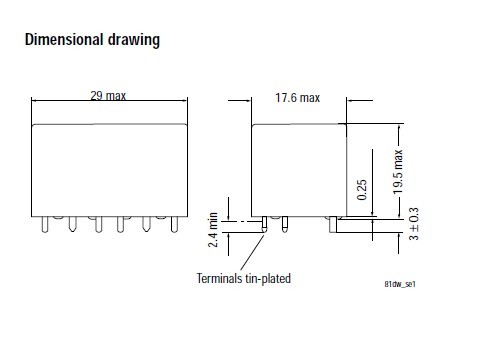

Diagrams

V23084-C2001-A303 pin connection
