Product Summary

The G5V-2-5V is a Miniature Relay for Signal Circuit.

Parametrics

G5V-2-5V absolute maximum ratings: (1)Contact resistance: 50 mΩ max. (G5V-2); 100 mΩ max. (G5V-2-H1); (2)Operate time: 7 ms max. (mean value: approx. 3.5 ms); (3)Release time: 3 ms max. (mean value: approx. 0.8 ms); (4)Operating frequency (max.): Mechanical 36,000 operations/hour, Electrical 1,800 operations/hour (under rated load); (5)Insulation resistance: 1,000 MΩ min (at 500 VDC); (6)Dielectric strength: 1,000 VAC, 50/60 Hz for 1 minute between coil and contacts, 1,000 VAC, 50/60 Hz for 1 minute between contacts of different poles, 750 VAC, 50/60 Hz for 1 minute between contacts of same poles, (500 VAC, 50/60 Hz for 1 minute between contacts of same poles for high-sensitive type).

Features

G5V-2-5V features: (1)Suitable for handling low signals in computer peripherals, telecommunications and security equipment; (2)Capable of switching loads 10μA to 2 A; (3)Conforms to FCC part 68 1,500 V surge withstand; (4)Reliable Ag + Au-clad, bifurcated crossbar contacts; (5)Fully-sealed construction; (6)RoHS Compliant.

Diagrams

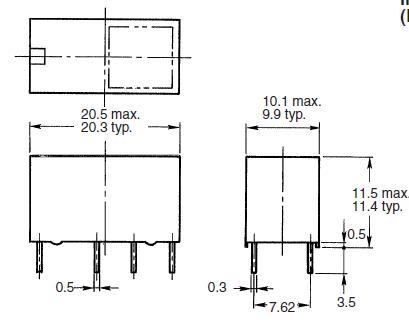

G5V-2-5V pin connection
