Product Summary

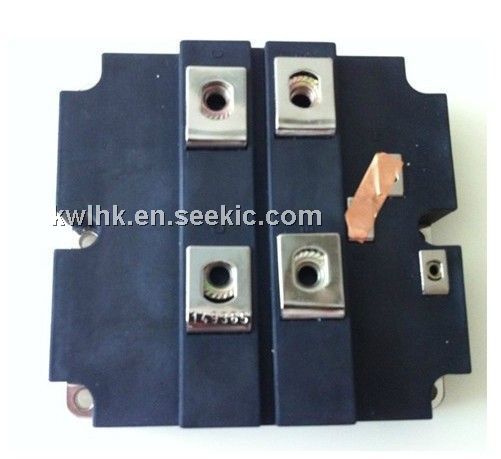

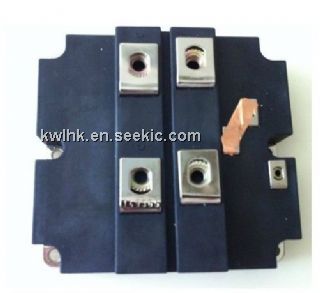

The FZ800R16KF1 is an IGBT-module.

Parametrics

FZ800R16KF1 absolute maximum ratings: (1)Kollektor emitter sperrspannung collector emitter voltage, VCES: 1200V; (2)Kollektor dauergleichstrom DC-collector current, ICbnom: 800A; (3)Periodischer kellektor spitzenstrom repetitive peak collector current, ICRM: 1600A; (4)Gesamt-verlustleistung tatal power dissipation, Ptot: 3550W; (5)Gate emitter spitzenspannung gate emitter peak voltage, VGES: +/-20V.

Features

FZ800R16KF1 features: (1)Low switching losses; (2)Unbeatable robustness; (3)VCEsat with positive temperature coefficient; (4)Low VCEsat.

Diagrams

FZ800R16KF1 pin connection
