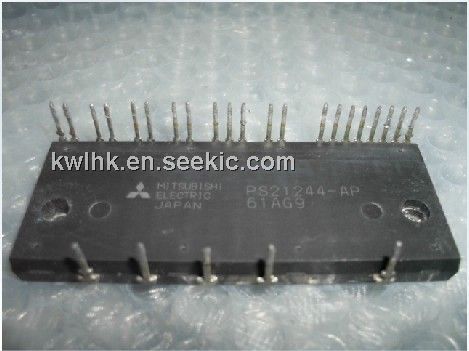

Product Summary

The PS21244-AP is an intellimod module dual-in-line intelligent power module. DIP and mini-DIP IPMs are intelligent power module that integrate power device, driver, and protection circuitry in an ultra compact dual-in-line transfer-mold package for use in driving small three phase motor. Applications are: (1)Washing Machines; (2)Refrigerators; (3)Air Conditioners; (4)Small Servo Motors; (5)Small Motor Control.

Parametrics

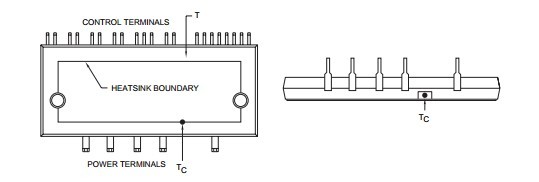

PS21244-AP absolute maximum ratings: (1)Power Device Junction Temperature* Tj: -20 to 150 °C; (2)Storage Temperature Tstg: -40 to 125 °C; (3)Case Operating Temperature (See TC Measure Point Illustration)TC: -20 to 100 °C; (4)Mounting Torque, M4 Mounting Screws: 13 in-lb; (5)Module Weight (Typical): 54 Grams; (6)Heatsink Flatness: -50 to 100 μm; (7)Self-protection Supply Voltage Limit (Short Circuit Protection Capability)** VCC(prot.): 400 Volts; (8)Isolation Voltage, AC 1 minute, 60Hz Sinusoidal, Connection Pins to Heatsink Plate VISO: 1500 Volts.

Features

PS21244-AP features: (1)Compact Packages; (2)Single Power Supply; (3)Integrated HVICs; (4)Direct Connection to CPU; (5)Optimized for 5kHz Operation.

Diagrams

PS21244-AP pin connection
