Product Summary

The MBR400100CT is a schottky barrier.

Parametrics

MBR400100CT absolute maximum ratings: (1)Operating Temperature: -65°C to +150°C; (2)Storage Temperature: -65°C to +150°C; (3)Maximum Recurrent Peak Reverse Voltage: 100V; (4)Maximum RMS Voltage: 70V; (5)Maximum DC Blocking Voltage: 100V; (6)Average Forward Current IF(AV): 400 A; (7)Peak Forward Surge Current IFSM: 3000A.

Features

MBR400100CT features: (1)Metal of siliconrectifier, majonty carrier conducton; (2)Guard ring for transient protection; (3)Low power loss high efficiency; (4)High surge capacity, High current capability.

Diagrams

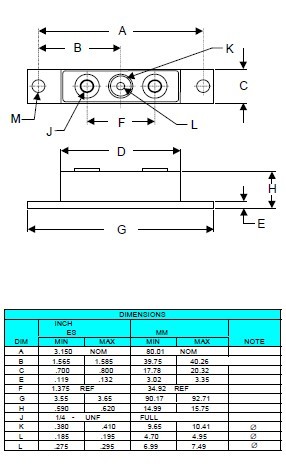

MBR400100CT pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MBR400100CT
MBR400100CT
GeneSiC Semiconductor
Schottky (Diodes & Rectifiers) SI PWR SCHOTTKY 2TWR 20-100V 400A100P/70R
Data Sheet
0-25: $35.48
25-100: $31.83
100-250: $28.27
MBR400100CTR
MBR400100CTR
GeneSiC Semiconductor
Schottky (Diodes & Rectifiers) SI PWR SCHOTTKY 2TWR 20-100V 400A100P/70R
Data Sheet
0-25: $35.48
25-100: $31.83
100-250: $28.27
