Product Summary

The SKD30 is a Power Bridge Rectifier. The applications of the SKD30 include Three phase rectifiers for power supplies, Input rectifiers for variable frequency drives, Rectifiers for DC motor field supplies and Battery charger rectifiers.

Parametrics

SKD30absolute maximum ratings: (1)ID: 6.5A; (2)IFSM: 370A; (3)VF: 2.2V; (4)rT: 12mΩ; (5)IRD: 300μA; (6)trr: 25μs.

Features

SKD30 features: (1)Isolated metal case with screw terminals; (2)Blocking voltage up to 1600V; (3)High surge currents; (4)Easy chassis mounting; (5)UL recognized, file no. E 63 532.

Diagrams

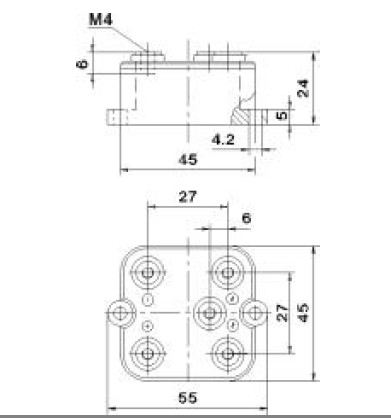

SKD30 pin connection
