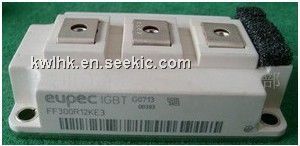

Product Summary

The FF300R12KE3G is an IGBT module.

Parametrics

FF300R12KE3G absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V when Tvi=25℃; (2)repetitive peak collector current, ICRM: 600A when tp=1ms, Tc=80℃; (3)total power dissipation, Ptot: 1450W when TC=25℃, Tvi=150℃; (4)gate-emitter peak voltage, VGES: ±20V.

Features

FF300R12KE3G features: (1)VCE sat: 1.70 to 2.15 V; (2)collector-emitter saturation voltage: 2.00 V; (3)gate threshold voltage: 5.0 to 6,5 V; (4)input capacitance Cies: 21.0 nF; (5)collector-emitter cut-off current ICES: 5.0 mA; (7)gate-emitter leakage current IGES: 400 nA.

Diagrams

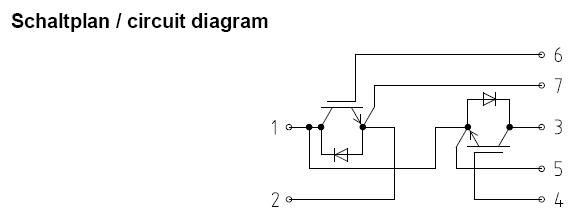

FF300R12KE3G pin connection
